Large Hexagonal Wire Mesh Welding Machine / Gabion Wire Mesh Machine For 3.5mm Wire

Basic Information
Place of Origin: China
Certification: ISO,CE
Model Number: LNWL57-100-2
Minimum Order Quantity: One set
Packaging Details: Nude packing& fixed by iron wire
Delivery Time: 30 work days
Max Mesh Width: 4300mm Motor Power: 20kw
Speed: 20r/min Type: PLC Control System Touch Screen(Option)
Name: Welding Mesh Machine Application: Bridge And Civil Engineering
High Light:

chicken wire machine

,

gabion wire mesh machine

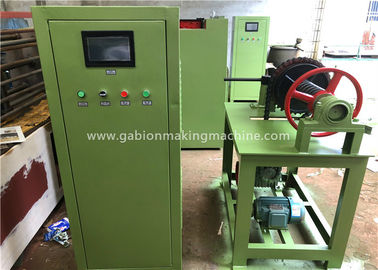

Large Hexagonal Wire Mesh Welding Machine / Gabion Machine for 3.5mm Wire 22kw



Description:



Gabion mesh machine is the professional machine to produce gabion mesh box, which is wildly used in protecting and sustaining bank, hillside, road and bridge, reservoir and other construction project, and it is the good material to prevent or control flood.

Gabion mesh machine adopt PLC automatic control, it has the characteristics of moving steadily, low noise, high potency, it is ideal machine for weaving gabion mesh with big specifications, big width, and big diameter.



Gabion Mesh Machine Main Parameters:



Model

Mesh size

(mm)

Max width

(mm)

Wire dia

(mm)

Twisted No.

Main axis speed

(r/min)

Power

(KW)

Theoretical speed

(m/h)

LNWL23-60-2 60*80 2300 1.6-3.0 3 25 11 165
LNWL23-80-2 80*100 1.6-3.0 195
LNWL23-100-2 100*120 1.6-3.2 225
LNWL23-1200-2 120*150 1.6-3.5 20 255
LNWL33-60-2 60*80 3300 1.6-2.8 25 15 165
LNWL33-80-2 80*100 1.6-3.0 195
LNWL33-100-2 100*120 1.6-3.2 225
LNWL33-120-2 120*150 1.6-3.5 20 255
LNWL43-60-2 60*80 4300 1.6-2.8 25 22 165
LNWL43-80-2 80*100 1.6-3.0 195
LNWL43-100-2 100*120 1.6-3.0 225
LNWL43-120-2 120*150 1.6-3.2 20 255





Advantages:



1. PLC control system touch screen(Option)

2. Infrared ray safety(Option)

3. Automatic stop system (Option)

other construction project, and it is the good material



to prevent or control flood.





Competitive Advantage:



1 All the parts of gabion machine are processed by our own factory; no parts were send to outside to
process, so the quality can be ensured.
2 We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our
technician to help install the machines in your country, and also could supply all the spare parts with cost price if customer need.
