Zinc / PVC Wire Coating Machine , Wire Mesh Fence Machine With Automatic Oil System

Basic Information
Place of Origin: CHINA
Certification: CE ,ISO
Model Number: LNWL-2055-2
Minimum Order Quantity: one set
Packaging Details: Nude packing&fixed by iron wire
Delivery Time: 30 work days
Payment Terms: L/C,T/T
Supply Ability: 10 sets/month
Mesh Size: 32x52mm Width: 1200mm
Wire Diamater: 1.2mm Name: Fencing Net Making Machine
Speed: 122m/hr Type: Automatic Oil System
High Light:

wire net making machine

,

automatic chain link fence machine

Zinc / PVC Galfan Coated Wire Mesh Hexagonal Wire Netting Making Machine



Descrition:



1 Mesh sizes: 32x52mm
2  Max netting width: 1200mm
3 Max galvanized wire diameter: 1.2mm
4  Power: 3kW
5 Theoretic output: 122m/hr
6 Automatic stop system (option): when the coiling finished or wire broken, the machine will stop automatically
7  Infrared ray safety protection system (option)
8  Automatic oil system



1. Max. speed can be 4.15 meter per minute, speed can be adjusted with different raw materials.
2. Big width. It can weave double 1.25 m or single 2.5 m width.
3. Even with flat openings, wire can be added at any spot when weaving.
4. We set the clutch brake device, the machine can move by spot.
5. Smooth operation and low noise. It sets an alarm at broken wire, broken mesh.
6. Flexible operation and has no high demand for operating personnel.
7. Reliable lubrication and convenient use.
8. Durable and strong, convenient maintenance.
We also provide fittings for main netting machines and spiral coiling machine. We may also design machines according to customers' particular requirements.



Specifications:



Style Specification Mesh size Width Wire diamater Twisting Lines Spindle Speed power of motor Theoretic output
(mm) (mm) (mm) r (r/min) (kw) (m/h)
LNWL-1015-2 1/2' 15x18 1200 0.8 3 33 3 51
LNWL-1018-2 5/8' 18x5 0.9 3 67
LNWL-1022-2 3/4' 22x33 1.2 3-5 83
LNWL-1027-2 1' 27x41 3-5 100
LNWL-1032-2 1/1/4' 32x52 3-5 122
LNWL-1039-2 1/1/2' 39x61 3 142
LNWL-1055-2 2' 55x70 1.5 3 162
LNWL-1078-2 3' 78x86 3-5 194







Others product:



  1. Gabion machine
  2. Gabion mesh machine
  3. Gabion wire mesh machine
  4. Gabion wire mesh making machine
  5. Gabion box machine
  6. Gabion mesh making machine
  7. Gabion making machine

Competitive Advantage:



1. All the parts of gabion machine are processed by our own factory; no parts were sending to outside to

process, so the quality can be ensured.



2. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our

technician to help install the machines in your country, and also could supply all the spare parts with cost

price if customer need.

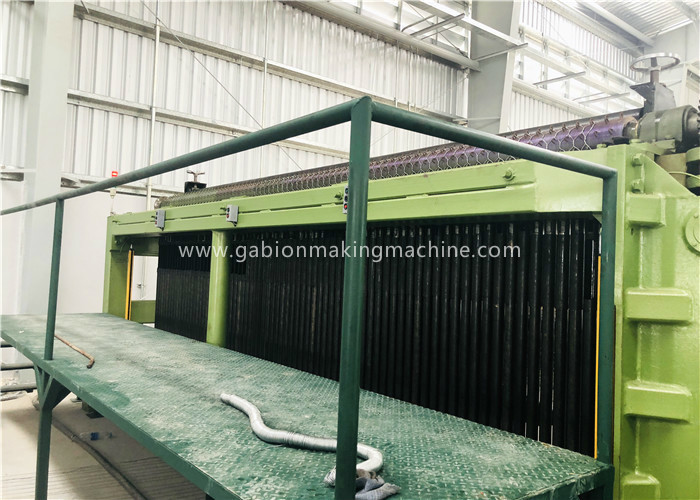

Zinc / PVC Wire Coating Machine , Wire Mesh Fence Machine With Automatic Oil System 0
