| Place of Origin: | CHINA |
|---|---|
| Certification: | CE ,ISO |
| Model Number: | LNWL-2055-2 |
| Minimum Order Quantity: | one set |
| Packaging Details: | Nude packing&fixed by iron wire |
| Delivery Time: | 30 work days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 10 sets/month |
| Mesh Size: | 32x52mm | Width: | 1200mm |
|---|---|---|---|
| Wire Diamater: | 1.2mm | Name: | Hexagonal Wire Netting Making Machine |
| Speed: | 122m/hr | Type: | Automatic Oil System |
| High Light: | hexagonal mesh machine,automatic chain link fence machine |
||

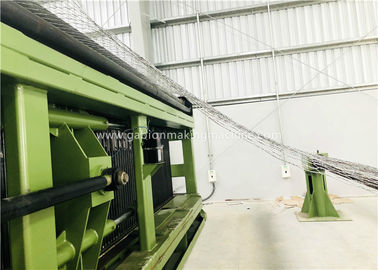

PVC Automatic Gabion Box Hexagonal Wire Netting Machine High Speed 3.5 Meter Per Minute
Descrition:
1 Mesh sizes: 32x52mm
2 Max netting width: 1200mm
3 Max galvanized wire diameter: 1.2mm
4 Power: 3kW
5 Theoretic output: 122m/hr
6 Automatic stop system (option): when the coiling finished or wire broken, the machine will stop automatically
7 Infrared ray safety protection system (option)
8 Automatic oil system
Specifications:
| Style | Specification | Mesh size | Width | Wire diamater | Twisting Lines | Spindle Speed | power of motor | Theoretic output |
| (mm) | (mm) | (mm) | r | (r/min) | (kw) | (m/h) | ||
| LNWL-1015-2 | 1/2' | 15x18 | 1200 | 0.8 | 3 | 33 | 3 | 51 |
| LNWL-1018-2 | 5/8' | 18x5 | 0.9 | 3 | 67 | |||
| LNWL-1022-2 | 3/4' | 22x33 | 1.2 | 3-5 | 83 | |||
| LNWL-1027-2 | 1' | 27x41 | 3-5 | 100 | ||||
| LNWL-1032-2 | 1/1/4' | 32x52 | 3-5 | 122 | ||||
| LNWL-1039-2 | 1/1/2' | 39x61 | 3 | 142 | ||||
| LNWL-1055-2 | 2' | 55x70 | 1.5 | 3 | 162 | |||
| LNWL-1078-2 | 3' | 78x86 | 3-5 | 194 |
Features:
1. Max. speed can be 4.15 meter per minute, speed can be adjusted with different raw materials.
2. Big width. It can weave double 1.25 m or single 2.5 m width.
3. Even with flat openings, wire can be added at any spot when weaving.
4. We set the clutch brake device, the machine can move by spot.
5. Smooth operation and low noise. It sets an alarm at broken wire, broken mesh.
6. Flexible operation and has no high demand for operating personnel.
7. Reliable lubrication and convenient use.
8. Durable and strong, convenient maintenance.
We also provide fittings for main netting machines and spiral coiling machine. We may also design machines according to customers' particular requirements.
Competitive Advantage:
1. All the parts of gabion machine are processed by our own factory; no parts were sending to outside to
process, so the quality can be ensured.
2. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our technician to help install the machines in your country, and also could supply all the spare parts with cost price if customer need.
