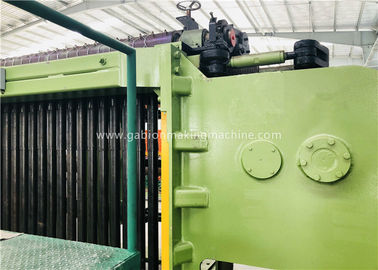

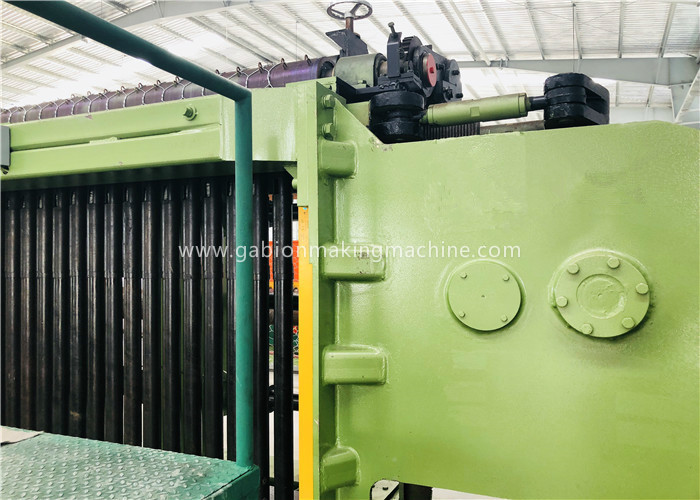

Hillside Automatic Spring Coiling Machine , 20r/Min Speed Gabion Making Machine 22KW

Hillside Automatic Spring Coiling Machine , 20r/Min Speed Gabion Making Machine 22KW

    • Hillside Automatic Spring Coiling Machine , 20r/Min Speed Gabion Making Machine 22KW
    • Hillside Automatic Spring Coiling Machine , 20r/Min Speed Gabion Making Machine 22KW
  • Hillside Automatic Spring Coiling Machine , 20r/Min Speed Gabion Making Machine 22KW

    Product Details:

    Place of Origin: China
    Certification: ISO,CE
    Model Number: LNWL57-100-2

    Payment & Shipping Terms:

    Minimum Order Quantity: One set
    Packaging Details: Nude packing& fixed by iron wire
    Delivery Time: 30 work days
    Contact Now
    Detailed Product Description
    Max Mesh Width: 4300mm Motor Power: 20kw
    Speed: 20r/min Type: Automatic Stop System
    Name: Coiling Spring Machine Application: Hillside
    High Light:

    wire mesh welding machine

    ,

    chicken wire machine

    Hillside Coiling Spring Machine 20r/min Speed , 22KW Gabion Mesh Machine



    Descrition:



    The coiling spring machine is designed to produce gabion mesh and reno mattress of various widths and mesh sizes.  coiling spring machin is one kind of special equipment for twisting metal wire hexagonal mesh with big wire, large mesh and wide breadth.

    • Mesh size(mm):120*150
    • Max width(mm):4300
    • Wire dia(mm):1.6-3.2
    • Twisted No:3
    • Main axis speed(r/min):20
    • Power(KW):22





    Gabion mesh  Machine Specification:



    Model

    Mesh size

    (mm)

    Max width

    (mm)

    Wire dia

    (mm)

    Twisted No.

    Main axis speed

    (r/min)

    Power

    (KW)

    Theoretical speed

    (m/h)

    LNWL23-60-2 60*80 2300 1.6-3.0 3 25 11 165
    LNWL23-80-2 80*100 1.6-3.0 195
    LNWL23-100-2 100*120 1.6-3.2 225
    LNWL23-1200-2 120*150 1.6-3.5 20 255
    LNWL43-60-2 60*80 4300 1.6-2.8 25 22 165
    LNWL43-80-2 80*100 1.6-3.0 195
    LNWL43-100-2 100*120 1.6-3.0 225
    LNWL43-120-2 120*150 1.6-3.2 20 255






     Application:



    Gabion Mesh Machine is the professional machine to produce GI & PVC coated gabion mesh,the mesh can be used to produce coop, and is widely used as protect and sustain bank, hillside, road and bridge, reservoir and other construction project, and it is the good material to prevent or control flood.



    Main machine:



    1. Gabion production line
    2. Netting straightening machine
    3. Netting cutting machine/mesh cutting machine/mesh sheet cutting machine
    4. Edge winding up machine/gabion mesh crimped machine
    5. Gabion packing machine/Gabion mesh press machine
    6. Wire pay off system
    7. PVC coating machine/PVC coating line/ PVC coated machine
    8.  Wire straightening and cutting machine/Wire rod straightening and cutting machine
