Weaving Width4500mm
-
Dimension7200x1400x2400mm
-
ModelSRC-80-2
-
SystemAutomatic PLC System With Servo Motor
-
ColorGrey
-
Product TypeGabion Machine
-
Production Speed30-50m/min
-
StructureHeavy Duty
-
Zinc Coating220-280g/m2
-
Mesh Hole80mm × 100 Mm
-
Working Width4500mm
-
ApplicationGabion Box&Gabion Mattress&Gabion Cage
-
Place of OriginCHINA
-
Brand NameSUNRICH
-
CertificationCE
-
Model NumberSRC-80-2
-
Minimum Order Quantity1 SET
-
Priceusd35000-usd48000
-
Packaging DetailsNUDE PACKING
-
Delivery Time35 WORKING DAYS
-
Supply Ability10 SETS/MONTH
Portable Gabion Machine for Flood Emergencies
1. Product Overview
Gabion Machine is an automated weaving equipment designed to produce gabion boxes, mattresses, and cages from galvanized or PVC-coated steel wires. These structures are widely used in below items:
- Erosion control (riverbanks, coastlines)
- Retaining walls (highways, railways)
- Flood defense (emergency barriers)
- Architectural landscaping (decorative structures)
2. Gabion Mesh Specifications
| Parameter | Standard Range | Custom Options |
|---|---|---|
| Mesh Type | Hexagonal woven | Double-twist, PVC-coated |
| Wire Diameter | 2.0mm–4.0mm (galvanized) | Up to 5.0mm (Zn-5%Al alloy) |
| Mesh Size | 60x80mm, 80x100mm, 100x120mm | Any size (CAD-designed) |
| Cage Dimensions | 1m×1m×1m to 3m×1m×1m | Foldable/Modular designs |
| Filler Material | Rocks, recycled concrete | Geotextile-lined variants |
3. Equipment Advantages
- High Efficiency: Produces 500–700 cages/day (vs. 100–150 manually).
- Material Savings: AI-driven tension control reduces wire waste by 15%.
- Energy Smart: Solar/hybrid power compatibility (30% lower CO2).
- Multi-Function: Some models integrate filling & stitching.
4. Gabion Machine Product Models & Specifications
| Model | Mesh Size | Wire Diameter | Mesh Size (m) | Speed(m/h) |
|---|---|---|---|---|
| SRC-60-2 | 60x80mm | 2.0–3.0 mm | 2m-5m | 180m/h |
| SRC-80-2 | 80x100mm | 2.0–3.5 mm | 2m-5m | 220m/h |
| SRC-100-2 | 100x120mm | 2.0–4.0 mm | 2m-5m | 250m/h |
5. Export Markets & Certifications
- Asia: India, Vietnam, Philippines, Nepal, Thailand, Indonesia
- Europe: Poland, Spain, Italy, UK (for EU-standard CE-certified models)
- Africa: South Africa, Algeria, Tunisia
- Americas: Brazil, Mexico
6. After-Sales Service
- Global technicians dispatched within 72 hours.
- Free training videos and remote diagnostics.
- Warranty Period: 12-month warranty, spare parts supply.

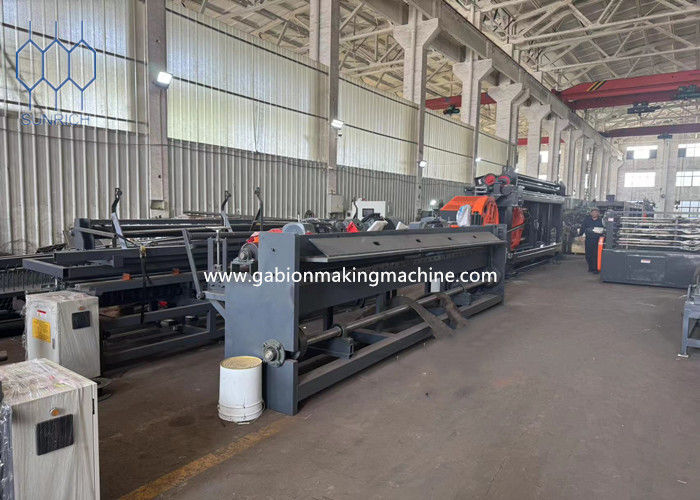

7. Set of gabion mesh production line including
- Gabion mesh weaving machine
- Wire tension roller
- Spring coiling machine
- Netting winding machine
8. Gabion Mesh Production Line Machinery List
| Equipment | Function | Key Specifications | Application |
|---|---|---|---|

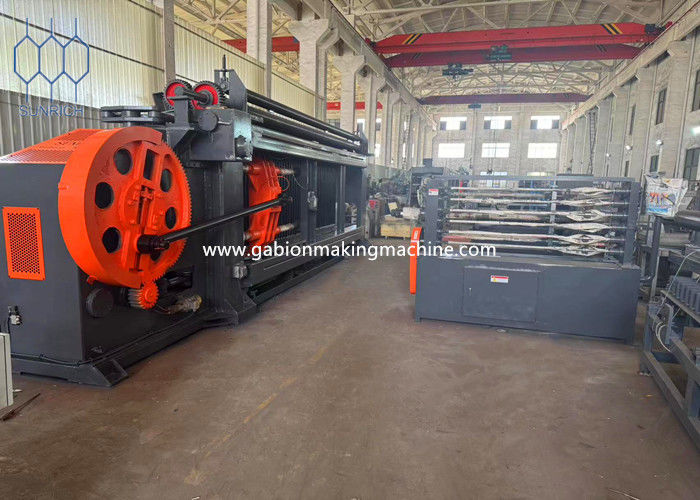

| Double-Twist Weaving Machine | Automatically weaves hexagonal mesh (enhanced strength). | - Mesh size: 60×80mm to 100×120mm (adjustable) - Output: 00–1200㎡/shift (8hrs) |
Standard gabion production |
| Automatic Straightening & Cutting Machine | Straightening and Cut gabion mesh sheet accordingly | - Cutting precision: ±2mm - Speed: 30 times/min - Power: 380V/50Hz |
Gabion Box /retaining walls |
| Edge winding machine | Edge mesh sheet both sides | - Mesh size: 60×80mm to 100×120mm (adjustable) - Speed: 3-4pieces/min - Width: 1-4m |
Gabion Box /retaining walls |
| Gabion Packing machine | Press gabion box | - Packing size: 2x1x1mm or 3x1x1m - Press: 60t - Power: 380V/50Hz |
Gabion Box /retaining walls |
| Iron Wire Straightening and cutting machine | Side wire straightening and cutting | - Cutting width: 5m - Max Wire diameter: 5mm |
Gabion Box /retaining walls |
Why Choose Us?
- Anping-based factory (China’s #1 gabion equipment hub).
- Customized solutions for extreme climates (desert/marine).
