Auto Gabion Box Machine , Gabion Mesh Machine With 4300mm Weaving Width

Basic Information
Place of Origin: China
Certification: ISO,CE
Model Number: LNWL43-80-2
Minimum Order Quantity: one set
Packaging Details: Nude packing and fixed by iron wire
Delivery Time: 30 work days
Supply Ability: 10 sets/month
Overall Size: 7200x1400x2400mm Weight: 17t
Lubricating: Automatic Oil System Spring Machine: 6 Bars
Name: Gabion Wire Mesh Machine
High Light:

hexagonal wire mesh machine


gabion wire mesh machine

High Efficiency Automatic Gabion Machine With 4300mm Weaving Width And Automatic Stop System




Quick Detail:


1. Mesh Size:80x100mm


2. Max Mesh Wdith:4300mm


3. Motor power:22kw


4.Speed: 195m/h


5. PLC control system touch screen(Option)


6. Infrared ray safety(Option)


7. Automatic stop system (Option)


8. Automatic oil system




Detail Specifications:


Gabion Mesh Machine Specification
Style Mesh size Width Wire diameter Twisting Lines Speed Power of Motor
(mm) (mm) (mm) r (r/min) (kw)
LNWL33-60-2 60x80 3300 2.7 3 165 22
LNWL33-80-2 80x100 3.0 3 195
LNWL33-100-2 100x120 3.7 3 225
LNWL33-120-2 120x150 4.0 3 255
LNWL43-60-2 60x80 4300 2.7 3 165 22
LNWL43-80-2 80x100 3.0 3 195
LNWL43-100-2 100x120 3.7 3 225
LNWL43-120-2 120x150 4.0 3 255
LNWL50-60-2 60x80 5300 2.7 3 165 30
LNWL50-80-2 80x100 3.0 3 195
LNWL50-100-2 100x120 3.7 3 225
LNWL50-120-2 120x150 4.0 3 255

Automatic Gabion Netting Machine For Galvanized And PVC Coated Wire





Machine Advantages:

1. The type machine you can choose two racks to make the machine operating more stable.


2. The equipment's framework is more reasonable, design is innovation, function is more perfect and safe using, the important is that weavng mesh is more easier than before.


3. The equipment can add automatic stop system, that means when there is no wire machine can stop sutomatically.




4. You can add Infrared ray safety function, it can stop automatically when worker touch the infrared. It can prevent worker injury.






Gabion Mesh Application:


Gabion Mesh Machine is the professional machine to produce GI & PVC coated gabion mesh,


the mesh can be used to produce coop, and is widely used as protect and sustain bank,


hillside, road and bridge, reservoir and other construction project, and it is the good material


to prevent or control flood.




Competitive Advantage:


1. The double rack drive gabion machine has two racks in the support plate, make it has more power to weave mesh more stable.


2. All the reed pipe have been update to increase pipe inside diameter, can put more spring wire mesh and improve work efficiency.


3. All the parts of gabion machine are processed by our own factory; no parts were sending to outside to process, so the quality can be ensured.


4. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our technician to help install the machines in your country, and also could supply all the spare parts with cost price if customer need.

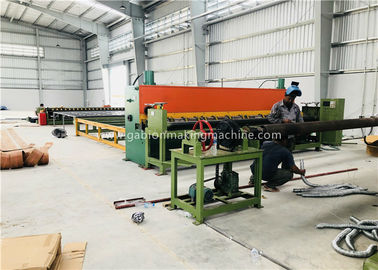

Auto Gabion Box Machine , Gabion Mesh Machine With 4300mm Weaving Width 1
