Galvanized Wire Machine / PVC Wire Coating Machine With Automatic Lubrication System

Basic Information
Place of Origin: China
Certification: ISO,CE
Model Number: LNWL43-100-2
Minimum Order Quantity: one set
Packaging Details: Nude packing and fixed by iron wire
Delivery Time: 30 work days
Supply Ability: 10 sets/month
Power: 30kw Mesh Size: 100x120mm
Lubricating: Automatic Oil System Spring Machine: 6 Bars With Servo Motor
Name: Wire Mesh Making Machine
High Light:

wire mesh making machine

,

automatic wire netting machine





5m Galvanized/PVC Coated Wire Gabion Box Machine For 100x120MM



With Automatic Lubricating System







Quick Detail:





1. Max Mesh Wdith:5000mm(can weave 4 one meters)



2. Mesh Size:100x120mm



3. Motor power:30kw



4. Machine Speed: 225m/h



5. Automatic oil system







Descrition:





The series gabion box mesh machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For    high corrosion resistance, zinc and PVC coated wire is available.







Machine Specifications:



Style Mesh size Width Wire diamater Spindle Speed power of motor Theoretic output
(mm) (mm) (mm) (r/min) (kw) (m/h)
LNWL23-60-2 60X80 2300 1.6-3 25 11 165
LNWL23-80-2 80X100 1.6-3 195
LNWL23-100-2 100X120 1.6-3.2 225
LNWL23-120-2 120X150 1.6-3.5 20 255
LNWL33-60-2 60X80 3300 1.6-2.8 25 15 165
LNWL33-80-2 80X100 1.6-3 195
LNWL33-100-2 100X120 1.6-3.2 225
LNWL33-120-2 120X150 1.6-3.5 20 255
LNWL43-60-2 60X80 4300 1.6-2.8 25 22 165
LNWL43-80-2 80X100 1.6-3 195
LNWL43-100-2 100X120 225
LNWL43-120-2 120X150 1.6-3.2 20 255





A Set Of Gabion Box Machine Including Below Machines:

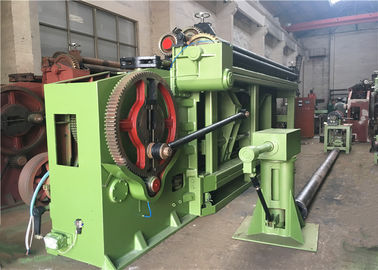

1. Main Machine



Galvanized Wire Machine / PVC Wire Coating Machine With Automatic Lubrication System 0





2. Wire tension device



Galvanized Wire Machine / PVC Wire Coating Machine With Automatic Lubrication System 1



3. Netting winding machine





Galvanized Wire Machine / PVC Wire Coating Machine With Automatic Lubrication System 2



4 Spring coiling machine



Galvanized Wire Machine / PVC Wire Coating Machine With Automatic Lubrication System 3



Gabion Production Line



Galvanized Wire Machine / PVC Wire Coating Machine With Automatic Lubrication System 4





Competitive Advantage:



1. The gabion box machine has automatic lubricating system and you can set the Lubrication time



2. All the parts of gabion machine are processed by our own factory; no parts were sending to outside to process, so the quality can be ensured.



3. We can provide 12 months guarantee for all the equipments, and if customer need, we will arrange our technician to help install the machines in your country, and also could supply all the spare parts with cost price if customer need.
