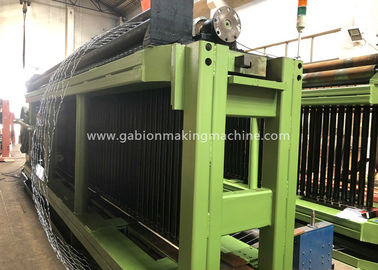

Bridge Double Twist Gabion Machine PVC Coated 22kw For 80x100MM With Mesh Size

Basic Information
Place of Origin: China
Certification: ISO,CE
Model Number: LNWL43-80-2
Minimum Order Quantity: one set
Packaging Details: Nude packing and fixed by iron wire
Delivery Time: 30 work days
Supply Ability: 10 sets/month
Control System: PLC Machine Width: 4300mm
Max Wire Diameter: 3.0mm Max Pvc Wire Diameter: 4.0mm
Name: Gabion Mesh Knitting Machine Application: Bridge
High Light:

gabion wire mesh machine


gabion making machine



bridge Double Twist Gabion Machine For 80x100MM With Automatic PLC Control System




Quick Detail:



1. Machine speed control:PLC&Inverter


2. Mesh Size:80x100mm


3. Motor power:22kw


4. Machine overall size:7200x1400x2300mm


5. Automatic oil system




Machine Specifications:


Style Mesh size Width Wire diamater Spindle Speed power of motor Theoretic output
(mm) (mm) (mm) (r/min) (kw) (m/h)
LNWL23-60-2 60X80 2300 1.6-3 25 11 165
LNWL23-80-2 80X100 1.6-3 195
LNWL23-100-2 100X120 1.6-3.2 225
LNWL23-120-2 120X150 1.6-3.5 20 255
LNWL33-60-2 60X80 3300 1.6-2.8 25 15 165
LNWL33-80-2 80X100 1.6-3 195
LNWL33-100-2 100X120 1.6-3.2 225
LNWL33-120-2 120X150 1.6-3.5 20 255
LNWL43-60-2 60X80 4300 1.6-2.8 25 22 165
LNWL43-80-2 80X100 1.6-3 195
LNWL43-100-2 100X120 225
LNWL43-120-2 120X150 1.6-3.2 20 255







The series gabion mesh machines have been designed to make gabion mesh of various widths


and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion


resistance, zinc and PVC coated wire is available.

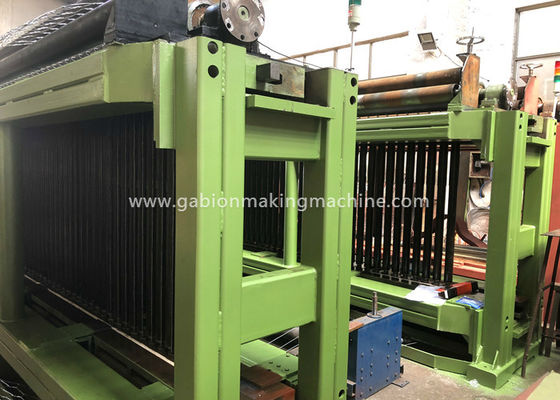

1. Mesh weaving machine




2. Netting winding machine working



3. Wire pay off system



Gabion Mesh Application:


Gabion Mesh Machine is the professional machine to produce GI & PVC coated gabion mesh,


the mesh can be used to produce coop, and is widely used as protect and sustain bank,


hillside, road and bridge, reservoir and other construction project, and it is the good material


to prevent or control flood.
