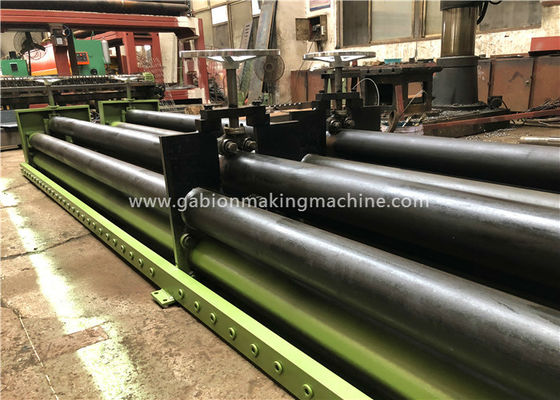

Three Twist Automatic Crimped Wire Mesh Machine PVC Coated For Mesh Dia 1.6mm - 3.2mm

Basic Information
Place of Origin: China
Certification: ISO,CE
Model Number: LNWL43-80-3
Minimum Order Quantity: one set
Packaging Details: Nude packing and fixed by iron wire
Delivery Time: 30 work days
Supply Ability: 10 sets/month
Mesh Twist: 3 Twist Wire Diameter: 1.6-3.2mm
Motor Power: 22kw Machine Speed: 195m/h
Type: Automatic Stop System Name: Automatic Crimped Wire Mesh Machine
High Light:

hexagonal wire mesh machine


gabion wire mesh machine



Three Twist PVC coated Wire Automatic Gabion Machine For Mesh Dia







1. Max Weaving Width: 4300mm


2. It can use Siemens PLC Control System according customers demands!


3.This machine is our new style, it can weave double twist and three twist gabion mesh on


the same machine and also can weave the mesh that 4.0mm diameter.


4.This type machine is using spiral coil.




Machine Specifications:


Style Mesh size Width Wire diamater Spindle Speed power of motor Theoretic output
(mm) (mm) (mm) (r/min) (kw) (m/h)
LNWL43-60-3 60X80 4300 1.6-3.0 25 22 165
LNWL43-80-3 80X100 1.6-4.0 195
LNWL43-100-3 100X120 225
LNWL43-120-3 120X150 1.6-4.0 20 255



 LNWL-3 TYPE Machine Advantages:



1. The LNWL-3 series gabion mesh machines have been designed to make gabion mesh of


various widths and mesh sizes; we can produce the machne as your size.


2. This new 3 series gabion mesh machines structure is simpleness, it can make the machine


weaving mesh more easier.


3. The capability is stabilization, all the points of iunction have bearing to fix, the parts will


hard-wearing, lengthen machine life.


4. The mesh that 3 series machine weave, the part of twist will be longer that 2 series


mchine, so when the mesh need edge curl that using the selvedge machine, it will going


easily and smoothly.
