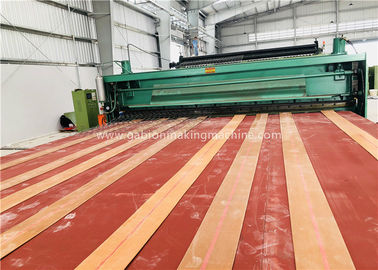

Heavy Duty Hexagonal Wire Netting Machine Double Rack Drive With 2300 mm Width

Basic Information
Place of Origin: China
Certification: ISO,CE
Model Number: LNWL23-100-2
Minimum Order Quantity: one set
Packaging Details: Nude packing and fixed by iron wire
Delivery Time: 30 work days
Supply Ability: 10 sets/month
Product Name: Gabion Machine Mesh Size: 100X120
Width: 2300mm Wire Diamater: 1.6-3.2mm
Spindle Speed: 25r/min Power Of Motor: 11kw
Theoretic Output: 225m/h
High Light:

gabion wire mesh machine


gabion making machine


Double Rack Drive Gabion Machine , Heavy Duty Hexagonal Wire Mesh With 2300mm Width



Gabion Machine Production Line:


Standard Machines:

1. Main netting machine
2. Winding machine
3. Wire tension device
4. Spiral coiling machine

Optional Machines:

5. Hydraulic packing machine
6. Wire spools
7. Work platform
8. Netting straightening machine
9. Netting cutting machine
10. Wrapped edge machine
11. Selvedge cutting machine
12. PVC coating line




Gabion Mesh Application:


Gabion Mesh Machine is the professional machine to produce GI & PVC coated gabion mesh, the mesh can be used to produce coop, and is widely used as protect and sustain bank, hillside, road and bridge, reservoir and other construction project, and it is the good material to prevent or control flood.



Machine Specifications:


Style Mesh size Width Wire diamater Spindle Speed power of motor Theoretic output
(mm) (mm) (mm) (r/min) (kw) (m/h)
LNWL23-100-2 100X120 2300 1.6-3.2 25 11 225




LNWL-3 TYPE Machine Advantages:



1. The LNWL-3 series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes; we can produce the machine as your size.


2. This new 3 series gabion mesh machines structure is simpleness, it can make the machine weaving mesh more easier.


3. The capability is stabilization, all the points of iunction have bearing to fix, the parts will hard-wearing, lengthen machine life.


4. The mesh that 3 series machine weave, the part of twist will be longer that 2 series

mchine, so when the mesh need edge curl that using the selvedge machine, it will going easily and smoothly.


This type machine is using spiral coil. And the twist could be double twisted and

three twisted as below picture.



Heavy Duty Hexagonal Wire Netting Machine Double Rack Drive With 2300 mm Width 0
