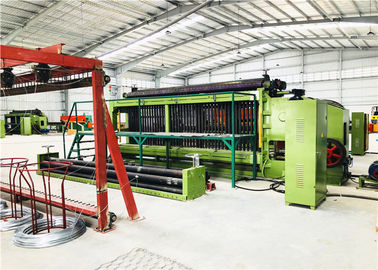

Gabion Machine Automatic 120X150MM Mesh Size Machine in chemical industry warming piping
Introduction:
The gabion mesh machines include four main standard parts: Main netting machine, Winding machine, Wire tension device and Spiral coiling machine, it can produce gabions of various widths and mesh sizes.
Gabion Machine:
| 1 | automatic, higher efficiency |
| 2 | inside winding device |
| 3 | overload protect clutch |
Gabion Mesh Application:
Gabion Mesh Machine is the professional machine to produce GI & PVC coated gabion mesh, the mesh can be used to produce coop, and is widely used as protect and sustain bank, hillside, road and bridge, reservoir and other construction project, and it is the good material to prevent or control flood.
Technical Parameter :
| Model |
Mesh size (mm) |
Wire diameter (mm) |
Max. width (mm) |
Twisting number |
Main drive shaft speed (r/min) |
Motor capacity(kw) | Theoretical speed(m/h) |
| LNWL23-60-2 | 60*80 | 1.6-3.0 |
2300
|
3
|
25
|
11
|
165 |
| LNWL23-80-2 | 80*100 | 1.6-3.0 | 195 | ||||
| LNWL23-100-2 | 100*120 | 1.6-3.5 | 225 | ||||
| LNWL23-120-2 | 120*150 | 1.6-3.2 | 20 | 255 | |||
| LNWL33-60-2 | 60*80 | 1.6-2.8 |
3300
|
25
|
15
|
165 | |
| LNWL33-80-2 | 80*100 | 1.6-3.0 | 195 | ||||
| LNWL33-100-2 | 100*120 | 1.6-3.2 | 225 | ||||
| LNWL33-120-2 | 120*150 | 1.6-3.5 | 20 | 255 | |||
| LNWL43-60-2 | 60*80 | 1.6-2.8 |
4300
|
25
|
22
|
165 | |
| LNWL43-80-2 | 80*100 | 1.6-3.0 | 195 | ||||
| LNWL43-100-2 | 100*120 | 1.6-3.0 | 225 | ||||
| LNWL43-120-2 | 120*150 | 1.6-3.2 | 20 | 255 | |||
| LNWL43-60-3 | 60*80 | 1.6-2.8 |
4300
|
5
|
25
|
22
|
165 |
| LNWL43-80-3 | 80*100 | 1.6-3.0 | 195 | ||||
| LNWL43-100-3 | 100*120 | 1.6-3.0 | 225 | ||||
| LNWL43-120-3 | 120*150 | 1.6-3.2 | 20 | 255 |
LNWL-3 TYPE Machine Advantages:
1. The LNWL-3 series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes; we can produce the machine as your size.
2. This new 3 series gabion mesh machines structure is simpleness, it can make the machine weaving mesh more easier.
3. The capability is stabilization, all the points of iunction have bearing to fix, the parts will hard-wearing, lengthen machine life.
4. The mesh that 3 series machine weave, the part of twist will be longer that 2 series
mchine, so when the mesh need edge curl that using the selvedge machine, it will going easily and smoothly.
This type machine is using spiral coil. And the twist could be double twisted and
three twisted as below picture.
Our products are sold all over the world, you can rest assured.
