PVC / Galvanized Gabion Box Machine , Hexagonal Mesh Machine SGS TUV Approved

Basic Information
Place of Origin: China
Certification: ISO,CE
Model Number: LNWL33-80-2
Minimum Order Quantity: one set
Packaging Details: Nude packing and fixed by iron wire
Delivery Time: 30 work days
Supply Ability: 10 sets/month
Product Name: Gabion Basket Machine Mesh Size: 80X100
Width: 3300mm Wire Diamater: 1.6-3mm
Spindle Speed: 25r/min Power Of Motor: 15kw
Theoretic Output: 195m/h
High Light:

hexagonal wire mesh machine


gabion wire mesh machine

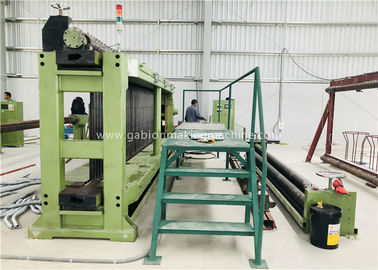

PVC / Galvanized Gabion Machine / Hexagonal Wire Mesh Machine SGS TUV




1. Gabion Machine widely used in oil, construction, raising, chemical industry warming piping and etc.

2. It is also used in fence, apartment and greening.

3. The hexagonal wire netting can be used in protect sea wall, hillside, road, bridge and civil engineering.

4. It is one of the best against flooding material.



Machine Specifications:


Style Mesh size Width Wire diamater Spindle Speed power of motor Theoretic output
(mm) (mm) (mm) (r/min) (kw) (m/h)
LNWL33-80-2 80X100 3300 1.6-3 25 15 195




Gabion Mesh Application:


Gabion Mesh Machine is the professional machine to produce GI & PVC coated gabion mesh, the mesh can be used to produce coop, and is widely used as protect and sustain bank, hillside, road and bridge, reservoir and other construction project, and it is the good material to prevent or control flood.




LNWL-3 TYPE Machine Advantages:



1. The LNWL-3 series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes; we can produce the machine as your size.


2. This new 3 series gabion mesh machines structure is simpleness, it can make the machine weaving mesh more easier.


3. The capability is stabilization, all the points of iunction have bearing to fix, the parts will hard-wearing, lengthen machine life.


4. The mesh that 3 series machine weave, the part of twist will be longer that 2 series

mchine, so when the mesh need edge curl that using the selvedge machine, it will going easily and smoothly.


This type machine is using spiral coil. And the twist could be double twisted and

three twisted as below picture.


PVC / Galvanized Gabion Box Machine , Hexagonal Mesh Machine SGS TUV Approved 0
