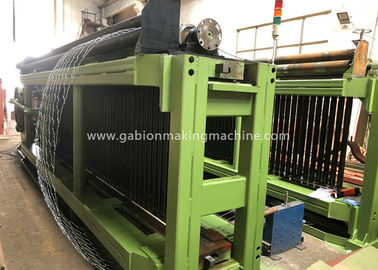

Road Automatic Gabion Machine 4300mm Max Mesh Weaving Width LNWL33-100-2

Road Automatic Gabion Machine 4300mm Max Mesh Weaving Width LNWL33-100-2

    • Road Automatic Gabion Machine 4300mm Max Mesh Weaving Width LNWL33-100-2
    • Road Automatic Gabion Machine 4300mm Max Mesh Weaving Width LNWL33-100-2
  • Road Automatic Gabion Machine 4300mm Max Mesh Weaving Width LNWL33-100-2

    Product Details:

    Place of Origin: China
    Certification: ISO,CE
    Model Number: LNWL33-100-2

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Packaging Details: Nude packing and fixed by iron wire
    Delivery Time: 30 work days
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Product Name: Gabion Machine Mesh Size: 100X120
    Width: 3300mm Wire Diamater: 1.6-3.2mm
    Spindle Speed: 25r/min Power Of Motor: 15kw
    Theoretic Output: 225m/h Application: Stone Cage



    Road Automatic Gabion Machine 4300mm Max Mesh Weaving Width Sea Wall





    Descrition:



    Gabion machine is designed to make hexagonal wire mesh of various widths and mesh sizes.

    We have 10 years export experience establishing trade with more than 20 countries, and Maccaferri,

    DEACERO, NOVA-S a.s.& DKG and TFS HOLDINGS are our long-standing relationship customers.





    Gabion Application



    Gabion Machine widely used in oil, construction, raising, chemical industry warming piping and etc. It is also used in fence, apartment and greening. The hexagonal wire netting can be used in protect sea wall, hillside, road, bridge and civil engineering. It is one of the best against flooding material.





    Gabion Machine Specifications:



    Model



    Mesh Size(mm) Max. Width(mm) Wire diameter(mm) Twisting Number Main Drive Shaft Speed(r/min) Motor Capacity(KW) Theoretical Speed(m/h)
    LNWL23-60-2 60*80 2300 1.6-3.0 3 25 11 165
    LNWL23-80-2 80*100 1.6-3.0 195
    LNWL23-100-2 100*120 1.6-3.5 225
    LNWL23-1200-2 120*150 1.6-3.2 20 255
    LNWL33-60-2 60*80 3300 1.6-2.8 25 15 165
    LNWL33-80-2 80*100 1.6-3.0 195
    LNWL33-100-2 100*120 1.6-3.2 225
    LNWL33-120-2 120*150 1.6-3.5 20 255
    LNWL43-60-2 60*80 4300 1.6-2.8 25 22 165
    LNWL43-80-2 80*100 1.6-3.0 195
    LNWL43-100-2 100*120 1.6-3.0 225
    LNWL43-120-2 120*150 1.6-3.2 20 255
    LNWL43-60-3 60*80 4300 1.6-2.8 5 25 2 165
    LNWL43-80-3 80*100 1.6-3.0 195
    LNWL43-100-3 100*!20 1.6-3.0 225
    LNWL43-120-3 120*150 1.6-3.2 20 255





    LNWL-3 TYPE Machine Advantage:



    1.Gabion mesh machine adopts PLC automatic control ,which have smooth operation;

    2.Low noise and high efficiency;

    3.Long service life.





    Road Automatic Gabion Machine 4300mm Max Mesh Weaving Width LNWL33-100-2
