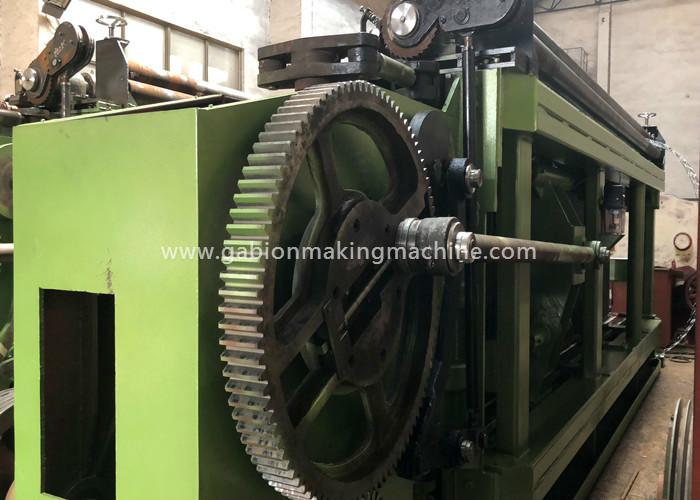

High Speed Galvanized Wire Heavy Duty Gabion Machine In Oil / Construction And Fence
Descrition:
1. The double rack drive gabion machine is our new product, we are first factory to produce this kind of
machine in China, the machine can meet the big diameter wire like 4.0mm, make gabion box more firmly.
2. All the parts of gabion machine are processed by our own factory; no parts were send to outside to
process, so the quality can be ensured.
Gabion Mesh Machine/Hexagonal Wire Mesh Netting Machine
Advantages:
1. New type double rack drive gabion knitting machine
2. High efficiency: theoretic output=4.25m/min
3. PLC control system touch screen(Option)
4. Infrared ray safety(Option)
5. Automatic stop system (Option)
6. Automatic oil system
7. The machine is satisfied with normal wire netting machine's requipment, and also can meet weaving large diameter hexagonal mesh's demand.
8. The design is innovation in China, it can weave the wire 4.0mm easily and speed as normal wire diameter.
Machine Specifications:
| Style | Mesh size | Width | Wire diamater | Spindle Speed | Twist | power of motor | Theoretic output |
| (mm) | (mm) | (mm) | (r/min) | (r ) | (kw) | (m/h) | |
| LNWL23-60-2ZX | 60X80 | 2300 | 1.6-3.2 | 25 | 3 | 11 | 165 |
| LNWL23-80-2ZX | 80X100 | 1.6-4.0 | 3 | 195 | |||
| LNWL23-100-2ZX | 100X120 | 1.6-4.0 | 3 | 225 | |||
| LNWL23-120-2ZX | 120X150 | 1.6-4.2 | 20 | 3 | 255 | ||
| LNWL33-60-2ZX | 60X80 | 3300 | 1.6-3.2 | 25 | 3 | 15 | 165 |
| LNWL33-80-2ZX | 80X100 | 1.6-4.0 | 3 | 195 | |||
| LNWL33-100-2ZX | 100X120 | 1.6-4.0 | 3 | 225 | |||
| LNWL33-120-2ZX | 120X150 | 1.6-4.2 | 20 | 3 | 255 |
the Gabion machhine of Application
Gabion Machine widely used in oil, construction, raising, chemical industry warming piping and etc. It is also used in fence, apartment and greening. The hexagonal wire netting can be used in protect sea wall, hillside, road, bridge and civil engineering. It is one of the best against flooding material.
Our products are sold all over the world, you can rest assured.
