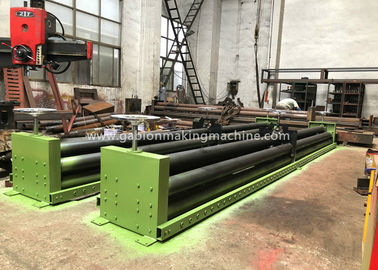

Galvanised Double Twist Gabion Wire Hexagonal Mesh Machine PLC Automatic
Gabion machine details
1. Spiral coil machine
2. Wire straightening machine
3. Winding mesh machine.
Gabion box Application:
|
Gabion box Machine is the professional machine to produce GI & PVC coated gabion mesh, the mesh can be used to produce coop, and is widely used as protect and sustain bank, hillside, road and bridge, reservoir and other construction project, and it is the good material to prevent or control flood. |
The Gabion machine of specification:
| Mesh Size (mm) |
Max. Breadth (mm) |
Max. Dia (mm) |
Weaving- vein No. |
Power (kw) |
Theoretical Manu -facturing Speed |
Exterior Size (m) |
Weight (T) |
| Meter /Hour |
L×W×H | ||||||
| 50×70 | 2300 | 2.5 | 3 | 11 | 140 | 5.2×1.4×2.4 | 13 |
| 3300 | 2.5 | 3 | 15 | 140 | 6.2×1.4×2.4 | 14 | |
| 4300 | 2.5 | 3 | 22 | 140 | 7.2×1.4×2.4 | 15 | |
| 60×80 | 2300 | 2.7 | 3 | 11 | 165 | 5.2×1.4×2.4 | 13 |
| 3300 | 2.7 | 3 | 15 | 165 | 6.2×1.4×2.4 | 14 | |
| 4300 | 2.7 | 3 | 22 | 165 | 7.2×1.4×2.4 | 15 | |
| 80×100 | 2300 | 3.0 | 3 | 11 | 195 | 5.2×1.4×2.4 | 13 |
| 3300 | 3.0 | 3 | 15 | 195 | 6.2×1.4×2.4 | 14 | |
| 4300 | 3.0 | 3 | 22 | 195 | 7.2×1.4×2.4 | 15 | |
| 100×120 | 2300 | 3.2 | 3 | 11 | 225 | 5.2×1.4×2.4 | 13 |
| 3300 | 3.2 | 3 | 15 | 225 | 6.2×1.4×2.4 | 14 | |
| 4300 | 3.2 | 3 | 22 | 225 | 7.2×1.4×2.4 | 15 | |
| 140×160 | 2300 | 4.0 | 3 | 11 | 225 | 5.2×1.4×2.4 | 13 |
| 3300 | 4.0 | 3 | 15 | 225 | 6.2×1.4×2.4 | 14 | |
| 4300 | 4.0 | 3 | 22 | 225 | 7.2×1.4×2.4 | 15 | |
| 60×80&120×160 | 2300 | 2.7/4.0 | 3 | 11 | 160/225 | 5.2×1.4×2.4 | 13 |
| 3300 | 2.7/4.0 | 3 | 15 | 160/225 | 6.2×1.4×2.4 | 14 | |
| 4300 | 2.7/4.0 | 3 | 22 | 160/225 | 7.2×1.4×2.4 | 15 |
Advantages:
1. New type double rack drive gabion machine
2. High efficiency: theoretic output=255M/H
3. PLC control system touch screen (Option)
4. Infrared ray safety(Option)
5. Automatic stop system (Option)
6. Automatic oil system
7. It use seamless steel tube to increase inside diameter , make it put more spring wire so it can save the time of changing spring wire and improve output.
8. The design is innovation in China, it can weave 4.0mm wire mesh easily like normal machine weave 2.4mm wire mesh, and speed is also quickly as normal style.
Our products are sold all over the world, you can rest assured.
