Custom Double Galvanized Gabion Wire Mesh Machine 4.0mm Wire With Overload Protect Clutch

Custom Double Galvanized Gabion Wire Mesh Machine 4.0mm Wire With Overload Protect Clutch

  • High Light

    hexagonal wire mesh machine

    ,

    gabion making machine

  • Product Name
    Gabion Mesh Machine
  • Mesh Size
    80X100
  • Width
    3300mm
  • Wire Diamater
    1.6-3mm
  • Spindle Speed
    25r/min
  • Application
    Hillside
  • Place of Origin
    China
  • Certification
    ISO,CE
  • Model Number
    LNWL33-80-2
  • Minimum Order Quantity
    one set
  • Packaging Details
    Nude packing and fixed by iron wire
  • Delivery Time
    30 work days
  • Supply Ability
    10 sets/month

Custom Double Galvanized Gabion Wire Mesh Machine 4.0mm Wire With Overload Protect Clutch

Double Galvanized Gabion Machine Rack Drive Heavy Duty Hexagonal Wire Netting Machine 4.0mm Wire



Descrition:





1.Gabion Mesh Machine is the professional machine to produce inerratic gabion mesh, the mesh can be used

to produce coop, and is widely used as protect and sustain bank, hillside, road and bridge, reservoir and

other construction project.

2. it is the good material to prevent or control flood.





Machine Specifications:



Double Rack Drive Heavy Duty Hexagonal Wire Netting Machine

Style

Mesh size(A)

Width

Wire diameter

Twisting Lines

Spindle Speed

Power of Motor

(mm)

(mm)

(mm)

r

(r/min)

(kw)

LNWL2-60-S

60-70

2000

3.2

3

25

11

LNWL2-80-S

80-90

4

3

LNWL2-100-S

100

4.2

3

LNWL3-60-S

60-70

3000

3.2

3

25

15

LNWL3-80-S

80-90

4

3

LNWL3-100-S

100

4.2

3

LNWL4-60-S

60-70

4000

3.2

3

25

22

LNWL4-80-S

80-90

4

3

LNWL4-100-S

100

4.2

3

Remark

Automated Double Rack Drive Heavy Duty Hexagonal Wire Netting Machine 4.0mm Wire





Gabion Mesh Application:



Gabion Mesh Machine is the professional machine to produce GI & PVC coated gabion mesh, the mesh can be used to produce coop, and is widely used as protect and sustain bank, hillside, road and bridge, reservoir and other construction project, and it is the good material to prevent or control flood.





Competitive Advantage:



1. The double rack drive gabion machine is our new product, we are first factory to produce this kind of

machine in China,

and the machine can meet the big diameter wire like 4.0mm, make gabion box more firmly.



2. All the parts of gabion machine are processed by our own factory; no parts were sending to outside to

process, so the quality can be ensured.



3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our

technician to help install the machines in your country, and also could supply all the spare parts with cost

price if customer need.

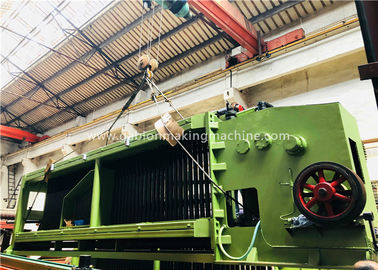

Custom Double Galvanized Gabion Wire Mesh Machine 4.0mm Wire With Overload Protect Clutch 1

Custom Double Galvanized Gabion Wire Mesh Machine 4.0mm Wire With Overload Protect Clutch 2
