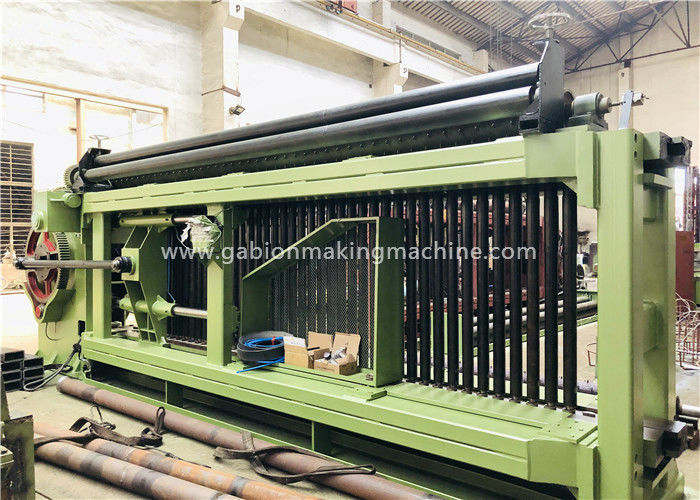

3 Twisting Line Gabion Mesh Machine For Hexagonal Wire Netting
Descrition:
Gabion Mesh Machine is the professional machine to produce inerratic gabion mesh, the mesh can be
used to produce coop, and is widely used as protect and sustain bank, hillside, road and bridge,
reservoir and other construction project, and it is the good material to prevent or control flood.
The double rack drive hexagonal wire netting machine is our new product that we develop in August-11, 2011.
It is the national initiative. It's specification please see below:
1.the double rack drive hexagonal wire netting machine is specialized equipment for producing large
diameter hexagonal
mesh .
2. The equipment's framework is more reasonable, design is innovative, function is more perfect and safe
using, and the important is that weaving mesh is easier than before.
3. The equipment is satisfied with normal wire netting machine's requirement, and also can meet weaving
large diameter hexagonal mesh's demand.
Detail Specification for all style of LNWL-ZX Gabion Machine
| Style | Mesh size | Width | Wire diamater | Spindle Speed | Twist | power of motor | Theoretic output |
| (mm) | (mm) | (mm) | (r/min) | (r ) | (kw) | (m/h) | |
| LNWL23-60-2ZX | 60X80 | 2300 | 1.6-3.2 | 25 | 3 | 11 | 165 |
| LNWL23-80-2ZX | 80X100 | 1.6-4.0 | 3 | 195 | |||
| LNWL23-100-2ZX | 100X120 | 1.6-4.0 | 3 | 225 | |||
| LNWL23-120-2ZX | 120X150 | 1.6-4.2 | 20 | 3 | 255 | ||
| LNWL33-60-2ZX | 60X80 | 3300 | 1.6-3.2 | 25 | 3 | 15 | 165 |
| LNWL33-80-2ZX | 80X100 | 1.6-4.0 | 3 | 195 | |||
| LNWL33-100-2ZX | 100X120 | 1.6-4.0 | 3 | 225 | |||
| LNWL33-120-2ZX | 120X150 | 1.6-4.2 | 20 | 3 | 255 | ||
| LNWL43-60-2ZX | 60X80 | 4300 | 1.6-3.2 | 25 | 3 | 22 | 165 |
| LNWL43-80-2ZX | 80X100 | 1.6-4.0 | 3 | 195 | |||
| LNWL43-100-2ZX | 100X120 | 1.6-4.0 | 3 | 225 | |||
| LNWL43-120-2ZX | 120X150 | 1.6-4.2 | 20 | 3 | 255 | ||
| LNWL43-60-3ZX | 60X80 | 1.6-3.2 | 25 | 5 | 165 | ||
| LNWL43-80-3ZX | 80X100 | 1.6-4.0 | 5 | 195 | |||
| LNWL43-100-3ZX | 100X120 | 1.6-4.0 | 5 | 225 | |||
| LNWL43-120-3ZX | 120X150 | 1.6-4.2 | 20 | 5 | 255 |
Gabion Mesh Application:
Gabion Machine widely used in oil, construction, raising, chemical industry warming piping and etc. It is also
used in fence, apartment and greening. The hexagonal wire netting can be used in protect sea wall, hillside,
road, bridge and civil engineering. It is one of the best against flooding material.
Competitive Advantage:
1. The double rack drive gabion machine is our new product, we are first factory to produce this kind of
machine in China,
and the machine can meet the big diameter wire like 4.0mm, make gabion box more firmly.
2. All the parts of gabion machine are processed by our own factory; no parts were sending to outside to
process, so the quality can be ensured.
3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our
technician to help install the machines in your country, and also could supply all the spare parts with cost
price if customer need.
Our products are sold all over the world, you can rest assured.
