25r/Min Speed Gabion Machine With Automatic Straightening / Cutting System

Basic Information
Place of Origin: China
Certification: ISO,CE
Model Number: LNWL33-80-2
Minimum Order Quantity: one set
Packaging Details: Nude packing and fixed by iron wire
Delivery Time: 30 work days
Supply Ability: 10 sets/month
Product Name: Greening Gabion Mesh Machine Max Width: 4300mm
Mesh Size(mm): 80x100 Weight: 17mt
Speed: 25r/min Application: Produce Coop And Sustain Bank
High Light:

hexagonal wire mesh machine


gabion wire mesh machine

CE Sustain Bank Gabion Making Machine With Automatic Straightening / Cutting System




1.Mesh size:80x100
2.Width: 4300mm max
3.Wire diameter: 2.0-4.0mm
The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.
We can manufacture gabion machine according to customer request.


Specification of  gabion mesh machine



Style Mesh size Width Wire diamater Spindle Speed Twist power of motor Theoretic output
(mm) (mm) (mm) (r/min) (r ) (kw) (m/h)
LNWL43-60-2ZX 60X80 4300 1.6-3.2 25 3 22 165
LNWL43-80-2ZX 80X100 1.6-4.0 3 195
LNWL43-100-2ZX 100X120 1.6-4.0 3 225
LNWL43-120-2ZX 120X150 1.6-4.2 20 3 255

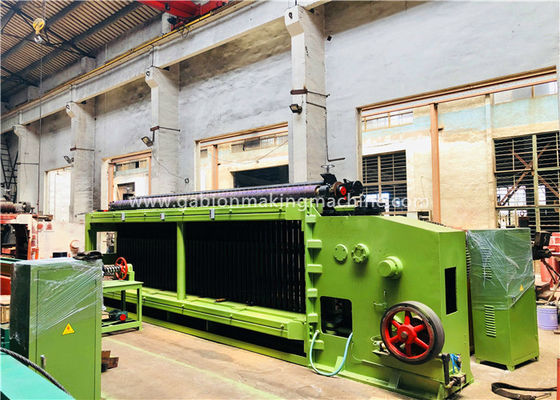

Gabion machine


The series automatic gabion machine includes four main standard parts: Main netting machine, winding machine, wire tension device and spiral coiling machine, it can produce gabions of various widths and mesh sizes.Our machine is specially used to produce the large size and heavy duty hexagonal (galvanized, galfan & PVC wire) wire meshes for the fence and the stone gabions usage. It has several models for different sizes of meshes and the maximum netting width is up to 4.3 meters. We can also supply the complete production line for your whole netting workshop.


Gabion machine working video(Click below picture)

25r/Min Speed Gabion Machine With Automatic Straightening / Cutting System 0



Installation and service:


We can dispatch our engineers to your factory for the installation of the machine and the training. About the detailed information of after-sales service, you can contact with our sales personnel.


25r/Min Speed Gabion Machine With Automatic Straightening / Cutting System 1
