Automated Stop Gabion Mesh Machine For 2.2mm Galvanized Wire Gabion Mattress
Description

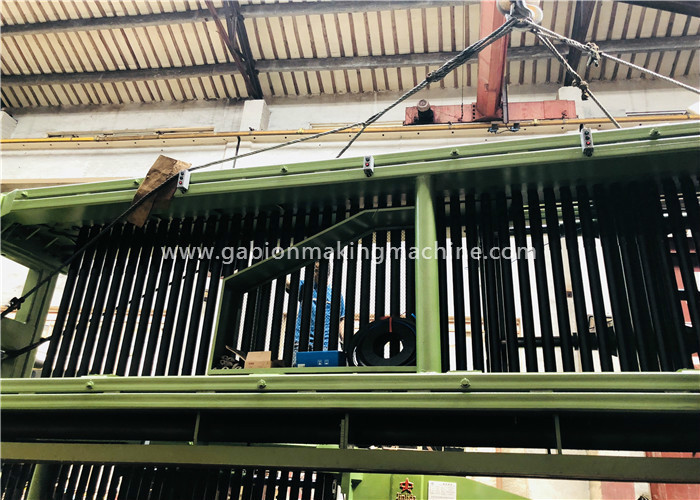

The series automatic gabion machine includes four main standard parts: Main netting machine, winding machine, wire tension device and spiral coiling machine, it can produce gabions of various widths and mesh sizes.Our machine is specially used to produce the large size and heavy duty hexagonal (galvanized, galfan & PVC wire) wire meshes for the fence and the stone gabions usage. It has several models for different sizes of meshes and the maximum netting width is up to 4.3 meters. We can also supply the complete production line for your whole netting workshop.
|
Application
Gabion Mesh Machine is the professional machine to produce inerratic gabion mesh, the mesh can be used to produce coop, and is widely used as protect and sustain bank, hillside, road and bridge, reservoir. and other construction project, and it is the good material to prevent or control flood. |
Specification of gabion mesh machine
| Style | Mesh size | Width | Wire diamater | Spindle Speed | Twist | power of motor | Theoretic output |
| (mm) | (mm) | (mm) | (r/min) | (r ) | (kw) | (m/h) | |
| LNWL33-60-2ZX | 60X80 | 3300 | 1.6-3.2 | 25 | 3 | 15 | 165 |
| LNWL33-80-2ZX | 80X100 | 1.6-4.0 | 3 | 195 | |||
| LNWL33-100-2ZX | 100X120 | 1.6-4.0 | 3 | 225 | |||
| LNWL33-120-2ZX | 120X150 | 1.6-4.2 | 20 | 3 | 255 | ||
| LNWL43-60-2ZX | 60X80 | 4300 | 1.6-3.2 | 25 | 3 | 22 | 165 |
| LNWL43-80-2ZX | 80X100 | 1.6-4.0 | 3 | 195 | |||
| LNWL43-100-2ZX | 100X120 | 1.6-4.0 | 3 | 225 | |||
| LNWL43-120-2ZX | 120X150 | 1.6-4.2 | 20 | 3 | 255 | ||
| LNWL43-60-3ZX | 60X80 | 1.6-3.2 | 25 | 5 | 165 | ||
| LNWL43-80-3ZX | 80X100 | 1.6-4.0 | 5 | 195 | |||
| LNWL43-100-3ZX | 100X120 | 1.6-4.0 | 5 | 225 | |||
| LNWL43-120-3ZX | 120X150 | 1.6-4.2 | 20 | 5 | 255 |
Advantages:
1. New type double rack drive gabion machine
2. High efficiency: theoretic output=255M/H
3. PLC control system touch screen(Option)
4. Infrared ray safety(Option)
5. Automatic stop system (Option)
6.Automatic oil system
7. It use seamless steel tube to increase inside diameter , make it put more spring wire so it can save the time of changing spring wire and improve output.
8. The design is innovation in China, it can weave 4.0mm wire mesh easily like normal machine weave 2.4mm wire mesh, and speed is also quickly as normal style.
