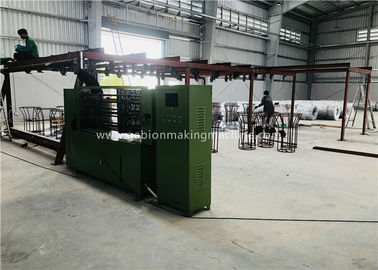

95m/H Speed Gabion Making Machine , LNWL43-80-2 Gabion Production Line

95m/H Speed Gabion Making Machine , LNWL43-80-2 Gabion Production Line

  • Highlight

    hexagonal wire mesh machine

    ,

    gabion wire mesh machine

  • Mesh Size
    80mmx100mm
  • Wire Diameter
    3.0mm
  • Twisting Lines
    3
  • Speed
    95m/h
  • Name
    Gabion Mesh Machine
  • Application
    Apartment And Greening
  • Place of Origin
    China
  • Certification
    ISO,CE
  • Model Number
    LNWL43-80-2
  • Minimum Order Quantity
    one set
  • Packaging Details
    Nude packing and fixed by iron wire
  • Delivery Time
    30 work days
  • Supply Ability
    10 sets/month

95m/H Speed Gabion Making Machine , LNWL43-80-2 Gabion Production Line



Construction 6 Bars Heavily Galvanized Gabion Mesh Packing Machine , High Efficiency



Quick Detail:





  •  Mesh Size:80x100mm
  •
  •  Max Mesh Wdith:4300mm
  •
  •  Motor power:22kw
  •
  • Speed: 195m/h
  •
  • PLC control system touch screen(Option)
  •
  •  Infrared ray safety(Option)
  •
  •  Automatic stop system (Option)
  •
  •  Automatic oil system



Gabion Mesh machine application:



Gabion Machine widely used in oil, construction, raising, chemical industry warming piping and etc. It is also

used in fence, c. The hexagonal wire netting can be used in protect sea wall, hillside,

road, bridge and civil engineering. It is one of the best against flooding material.





Specifications:



Gabion Machine Specification
Style Mesh size Width Wire diameter Twisting Lines Speed Power of Motor
(mm) (mm) (mm) r (r/min) (kw)
LNWL33-60-2 60x80 3300 2.7 3 165 22
LNWL33-80-2 80x100 3.0 3 195
LNWL33-100-2 100x120 3.7 3 225
LNWL33-120-2 120x150 4.0 3 255
LNWL50-60-2 60x80 5300 2.7 3 165 30
LNWL50-80-2 80x100 3.0 3 195
LNWL50-100-2 100x120 3.7 3 225
LNWL50-120-2 120x150 4.0 3 255







Gabion Machine Advantages:


1. The type machine you can choose two racks to make the machine operating more stable.



2. The equipment's framework is more reasonable, design is innovation, function is more perfect and safe using, the important is that weavng mesh is more easier than before.



3. The equipment can add automatic stop system, that means when there is no wire machine can stop sutomatically.



4. You can add Infrared ray safety function, it can stop automatically when worker touch the infrared. It can prevent worker injury.





Ours products:


  1. Gabion mesh making machine
  2. Gabion making machine
  3. Gabion box making machine
  4. Hexagonal wire netting machine
  5. Hexagonal wire mesh machine
  6. Gabion wire netting making machine
  7. Gabion production line
  8. Netting straightening machine
