20kw Gabion Mesh Machine 20r/Min Speed For Produce Coop / Sustain Bank

Basic Information
Place of Origin: China
Certification: ISO,CE
Model Number: LNWL57-100-2
Minimum Order Quantity: One set
Packaging Details: Nude packing& fixed by iron wire
Delivery Time: 30 work days
Max Mesh Width: 4300mm Motor Power: 20kw
Speed: 20r/min Type: Automatic Stop System
Name: Gabion Mesh Machine Application: Produce Coop And Sustain Bank
High Light:

wire mesh welding machine


gabion wire mesh machine

Steel Automatic Stop System Gabion Mesh machine 20r/min Speed for Produce Coop

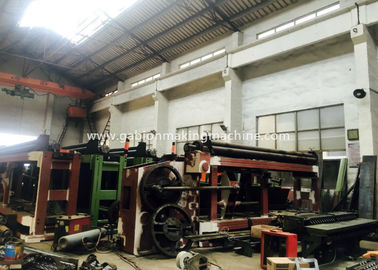

Gabion machine is designed to produce gabion mesh and of various widths and mesh sizes. Konson brand Gabion Machine is one kind of special equipment for twisting metal wire hexagonal mesh with big wire, large mesh and wide breadth.

​Mesh Size:120X150mm

Max Mesh Wdith:4300mm

​Motor power:22kw

​Speed: 20r/min

Automatic stop system (Option)

Automatic oil system

Automatic stop system
nfrared ray safety system
All of the core parts of machines are processed by our own factory, the quality can be ensured.




 Gabion mesh  Machine Specification



Mesh size


Max width


Wire dia


Twisted No.

Main axis speed




Theoretical speed


LNWL23-60-2 60*80 2300 1.6-3.0 3 25 11 165
LNWL23-80-2 80*100 1.6-3.0 195
LNWL23-100-2 100*120 1.6-3.2 225
LNWL23-1200-2 120*150 1.6-3.5 20 255
LNWL43-60-2 60*80 4300 1.6-2.8 25 22 165
LNWL43-80-2 80*100 1.6-3.0 195
LNWL43-100-2 100*120 1.6-3.0 225
LNWL43-120-2 120*150 1.6-3.2 20 255
LNWL43-60-3 60*80 4300 1.6-2.8 5 25 22 165
LNWL43-80-3 80*100 1.6-3.0 195
LNWL43-100-3 100*120 1.6-3.0 225
LNWL43-120-3 120*150 1.6-3.2 20 255





Gabion Mesh machine Application:


Gabion Mesh Machine is the professional machine to produce GI & PVC coated gabion mesh,


the mesh can be used to produce coop, and is widely used as protect and sustain bank,


hillside, road and bridge, reservoir and other construction project, and it is the good material


to prevent or control flood.
