| Place of Origin: | China |
|---|---|
| Certification: | ISO,CE |
| Model Number: | LNWL57-100-2 |
| Minimum Order Quantity: | One set |
| Packaging Details: | Nude packing& fixed by iron wire |
| Delivery Time: | 30 work days |
| Max Mesh Width: | 4300mm | Motor Power: | 20kw |
|---|---|---|---|
| Speed: | 20r/min | Type: | PLC Control System Touch Screen(Option) |
| Name: | Wire Mesh Making Machine | Application: | Chemical Engineering Industry |
| High Light: | wire mesh welding machine,gabion wire mesh machine |
||

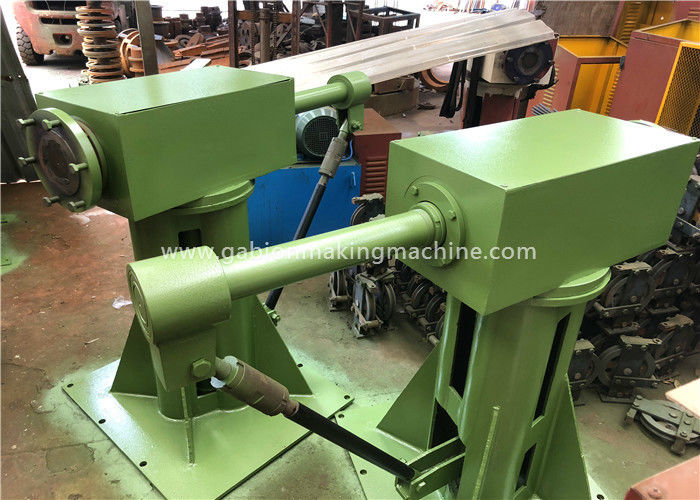

20r/min Speed Galvanized Wire Netting Gabion Mesh Machine For Chemical Engineering Industry
Quick Detail:
1. Mesh sizes: 100X120mm
2. twist: double twist
3. Max. netting width: 2300mm
4. Max. galvanized wire diameter: 3.2mm
5. Max PVC wire diameter: 4.2mm
6. Spindle Speed:25r/min
7. Power: 11Kw
8. Size: 7200 x 1400 x 2400mm
9. Weight: 15MT
10. Theoretic output: 225m/hr
11. Automatic stop system (option): when the coiling finished or wire broken, the machine will stop
automatically
12. Infrared ray safety protection system (option)
13. Automatic oil system
Descrition:
the lnwl-2 series gabion mesh machines have been designed to make gabion mesh of various widths
and mesh sizes, we can produce the machine as your size. please note: all machines which showed
in globalmarket and made-in -china and alibaba are from jinlida. we supply advanced machine to oversea
clients directly only. if you want to buy advanced machine and want to get best after sales service,
please contact me directly.
Gabion Mesh Machine Specifications :
| Model |
Mesh size (mm) |
Max width (mm) |
Wire dia (mm) |
Twisted No. |
Main axis speed (r/min) |
Power (KW) |
Theoretical speed (m/h) |
| LNWL23-60-2 | 60*80 | 2300 | 1.6-3.0 | 3 | 25 | 11 | 165 |
| LNWL23-80-2 | 80*100 | 1.6-3.0 | 195 | ||||
| LNWL23-100-2 | 100*120 | 1.6-3.2 | 225 | ||||
| LNWL23-1200-2 | 120*150 | 1.6-3.5 | 20 | 255 | |||
| LNWL33-60-2 | 60*80 | 3300 | 1.6-2.8 | 25 | 15 | 165 | |
| LNWL33-80-2 | 80*100 | 1.6-3.0 | 195 | ||||
| LNWL33-100-2 | 100*120 | 1.6-3.2 | 225 | ||||
| LNWL33-120-2 | 120*150 | 1.6-3.5 | 20 | 255 | |||
| LNWL43-60-2 | 60*80 | 4300 | 1.6-2.8 | 25 | 22 | 165 | |
| LNWL43-80-2 | 80*100 | 1.6-3.0 | 195 | ||||
| LNWL43-100-2 | 100*120 | 1.6-3.0 | 225 | ||||
| LNWL43-120-2 | 120*150 | 1.6-3.2 | 20 | 255 |
Applications:
The gabion mesh machine, is the professional equipment that produces hexagonal wire netting, its product
extensively used for petroleum, building, farming and chemical engineering industry, keep warm piping
and other piping, be also used for rounding column, residence and park greening safeguard etc..
Gabion mesh is still more available to manufacture the gabion mesh box and extensively used for safeguard
and backing sea dike, hillside, road , bridge and reservoir and others, it is the best material of the flood
control at the same time.
