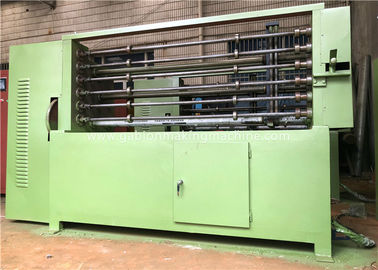

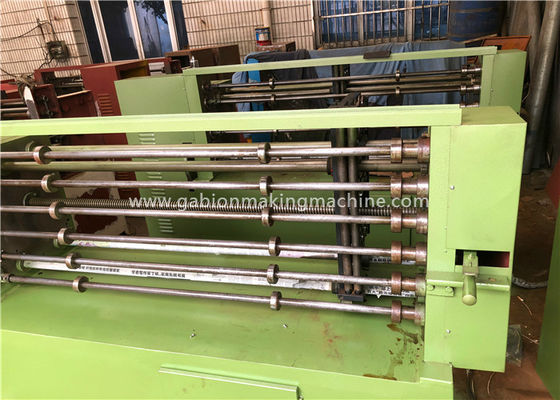

Heavy Duty Gabion Mesh Machine LNWL57-100-2 For Making Hexagonal Wire Netting

Name: Heavy Duty Gabion Mesh Machine LNWL57-100-2 For Making Hexagonal Wire Netting
Brand: Jiangyin Sunrich Machinery Technology Co., LTD
SKU: LNWL57-100-2
Price: 41,500.00 USD
Availability: InStock

Model Number:	LNWL57-100-2
MOQ:	One set
Delivery Time:	30 work days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE

Max Mesh Width:

4300mm

Motor Power:

20kw

Speed:

20r/min

Type:

Automatically

Name:

Wire Mesh Making Machine

Application:

Protect Sea Wall

Packaging Details:

Nude packing& fixed by iron wire

Highlight:

chicken wire machine

gabion wire mesh machine

Product Description

Heavy Duty Gabion Mesh Machine 4300mm For Making Hexagonal Wire Netting High Efficiency

Quick Detail:

Mesh sizes: 120X150mm
twist: double twist
Max. width: 3300mm
Spindle Speed:25r/min
Power: 11Kw
Size: 7200 x 1400 x 2400mm
Weight: 15MT
Theoretic output: 255m/hr

Automatic stop system (option): when the coiling finished or wire broken, the machine will stop
automatically
Infrared ray safety protection system (option)
Automatic oil system

Descrition:

the lnwl-2 series gabion mesh machines have been designed to make gabion mesh of various widths
and mesh sizes, we can produce the machine as your size. please note: all machines which showed
in globalmarket and made-in -china and alibaba are from jinlida. we supply advanced machine to oversea
clients directly only. if you want to buy advanced machine and want to get best after sales service,
please contact me directly.

Gabion Mesh Machine Specifications :

Model	Mesh size (mm)	Max width (mm)	Wire dia (mm)	Twisted No.	Main axis speed (r/min)	Power (KW)	Theoretical speed (m/h)
LNWL23-60-2	60*80	2300	1.6-3.0	3	25	11	165
LNWL23-80-2	80*100		1.6-3.0				195
LNWL23-100-2	100*120		1.6-3.2				225
LNWL23-1200-2	120*150		1.6-3.5		20		255
LNWL33-60-2	60*80	3300	1.6-2.8		25	15	165
LNWL33-80-2	80*100		1.6-3.0				195
LNWL33-100-2	100*120		1.6-3.2				225
LNWL33-120-2	120*150		1.6-3.5		20		255
LNWL43-60-2	60*80	4300	1.6-2.8		25	22	165
LNWL43-80-2	80*100		1.6-3.0				195
LNWL43-100-2	100*120		1.6-3.0				225
LNWL43-120-2	120*150		1.6-3.2		20		255

Gabion Application

Gabion Machine widely used in oil, construction, raising, chemical industry warming piping and etc. It is also

used in fence, apartment and greening. The hexagonal wire netting can be used in protect sea wall, hillside,

road, bridge and civil engineering. It is one of the best against flooding material.

Heavy Duty Gabion Mesh Machine LNWL57-100-2 For Making Hexagonal Wire Netting 0
