Rust Proof Gabion Box Hot Dip Galvanized Low Carbon Steel Wire Gabion Mesh Cage

Model Number:	LNWL-2
MOQ:	100 sets
Delivery Time:	15 work days
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001,ISO14000

Wire Diameter:

Garden Gabion Baskets

Selvedge Wire Dia:

3.0mm

Box Size:

2x1x1m

Mesh Size:

100x120mm

Material:

Hot-dip Galvanized Low Carbon Steel Wire

Applications:

Water And Soil Protection

Packaging Details:

Packing by mesh packing machine&fixed by iron wire

Supply Ability:

120000 m2/month

Highlight:

gabion mesh cage

gabion wall baskets

Product Description

Water and Soil Protection Gabion Box With Hot-dip Galvanized Low Carbon Steel Wire

Gabion Box are multiple twisted hexagonally woven galvanized or PVC coated steel wire mesh compartmented baskets with a rectangular box shape. The compartments are of equal dimension and are formed by internal diaphragms. The compartment is filled with natural stone and the diaphragms assure minimum stone migration within the basket. Thus providing even distribution of the stone even in abnormal conditions, and adding strength to the container to help retain its rectangular shape during the filling operation.

Gabion box is consist of rectangular units, fabricated from a double-twisted hexagonal mesh, filled with stones. In order to reinforce the structure, its edges with a wire having a thicker diameter than the mesh wire. Gabion boxes be divided into cells by diaphragms at every 1 meters.

gabion specifications			Mesh hole modle
			8x10cm		6x8cm
Length(m)	Width(m)	Height(m)	Galvanized or PVC coated		Galvanized or PVC coated
			Mesh diameter	Zinc	Mesh diameter	Zinc
2	1	1	2.7mm	>245g/m²	2.0mm	>215g/m²
3	1	1	Side wire diameter	Zinc	Side wire diameter	Zinc
4	1	1	3.4mm	>265g/²	2.7mm	>245g/m²
6	1	1	Binding wire diameter of 2.7m		Binding wire diameter of 2.0m

Length(m)	Width(m)	Height(m)	Volume(m³)
2	1	0.5	1
4	1	0.5	2
6	2	0.5	6
1.5	1	1	1.5
1	1	1	1
2	1	1	2
3	1	1	3
4	1	1	4
2	0.5	0.5	0.5
4	0.5	0.5	1

Applications:

• Control and guide of water or flood

• Flood bank or guiding bank

• Prevention of rock breaking

• Water and soil protection

• Bridge protection

• Strengthening structure of soil

• Protection engineering of seaside area

• Seaport engineering

• Isolation walls

• Protection of road

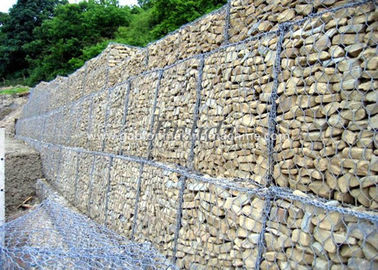

Rust Proof Gabion Box Hot Dip Galvanized Low Carbon Steel Wire Gabion Mesh Cage 0
