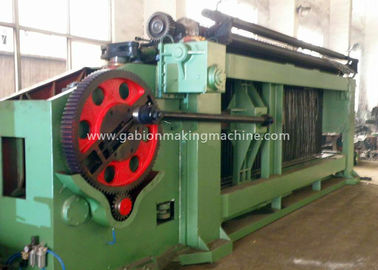

Roll Mesh Gabion Box Machine With Automatic Stop System / 2.5mm Wire Dia
gabion box machine Detailed Product Description
The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.We can manufacture gabion machine according to customer request.
Machine Specifications:
| Style | Mesh size | Width | Wire diamater | Spindle Speed | power of motor | Theoretic output |
| (mm) | (mm) | (mm) | (r/min) | (kw) | (m/h) | |
| LNWL23-60-2 | 60X80 | 2300 | 1.6-3 | 25 | 11 | 165 |
| LNWL23-80-2 | 80X100 | 1.6-3 | 195 | |||
| LNWL23-100-2 | 100X120 | 1.6-3.2 | 225 | |||
| LNWL23-120-2 | 120X150 | 1.6-3.5 | 20 | 255 | ||
| LNWL33-60-2 | 60X80 | 3300 | 1.6-2.8 | 25 | 15 | 165 |
| LNWL33-80-2 | 80X100 | 1.6-3 | 195 | |||
| LNWL33-100-2 | 100X120 | 1.6-3.2 | 225 | |||
| LNWL33-120-2 | 120X150 | 1.6-3.5 | 20 | 255 | ||
Advantages:
1. New type double rack drive gabion knitting machine
2. High efficiency: theoretic output=4.25m/min
3. PLC control system touch screen(Option)
4. Infrared ray safety(Option)
5. Automatic stop system (Option)
6. Automatic oil system
7. The knitting machine is satisfied with normal wire netting machine's requipment, and also can meet weaving large diameter hexagonal mesh's demand.
8. The design is innovation in China, it can weave the wire 4.0mm easily and speed as normal wire diameter.
Our products are sold all over the world, you can rest assured.
