PLC Automatic Hexagonal Wire Mesh Weaving Machine For Sea Wall CE Approved

PLC Automatic Hexagonal Wire Mesh Weaving Machine For Sea Wall CE Approved

  • Highlight

    wire mesh welding machine

    ,

    gabion wire mesh machine

  • Twist
    Double Twist
  • Max. Netting Width
    2300mm
  • Max. Galvanized Wire Diameter
    3.5mm
  • Type
    PLC Automatic
  • Application
    Sea Wall
  • Name
    Gabion Making Machine
  • Place of Origin
    China
  • Certification
    ISO , CE
  • Model Number
    LNWL57-100-2
  • Minimum Order Quantity
    One set
  • Packaging Details
    Nude packing& fixed by iron wire
  • Delivery Time
    30 work days

PLC Automatic Hexagonal Wire Mesh Weaving Machine For Sea Wall CE Approved

Hexagonal Mesh Weaving Machine , Sea Wall Fully Automatic Wire Coiling Machine ​



Descrition

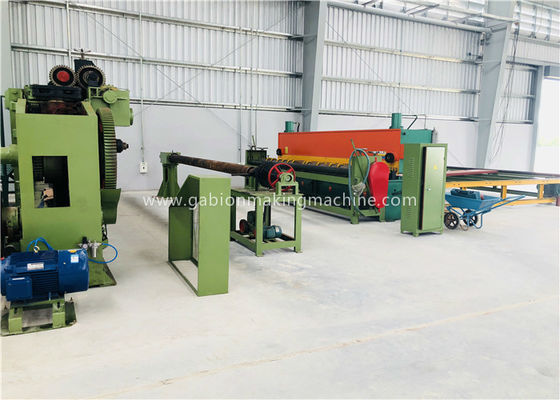

The gabion mesh machine is the machine that produces the gabion net. The production process is divided into three parts: the wire feeding part, the weaving part and the receiving net. The gabion net made by this machine is rolled or flaked. The gabion cage used to reinforce and reinforce the embankment is a sheet-like gabion cage that is cage-connected. Can also be used for parks, villas and other places of temporary construction or partition blocking effect. The advantage is strong and long life.



Specification:



     1. Mesh sizes: 120x150mm

2. twist: double twist

3. Max. netting width: 2300mm

4. Max. galvanized wire diameter: 1.6-3.5mm

5. Max PVC wire diameter: 4.5mm

6. Spindle Speed:20r/min



Mesh size Width Wire diamater Spindle Speed Twist power of motor Theoretic output
(mm) (mm) (mm) (r/min) (r ) (kw) (m/h)
60X80 2300 1.6-3.2 25 3 11 165
80X100 1.6-4.0 3 195
100X120 1.6-4.0 3 225
120X150 1.6-4.2 20 3 255
60X80 4300 1.6-3.2 25 3 22 165
80X100 1.6-4.0 3 195
100X120 1.6-4.0 3 225
120X150 1.6-4.2 20 3 255
60X80 1.6-3.2 25 5 165
80X100 1.6-4.0 5 195
100X120 1.6-4.0 5 225
120X150 1.6-4.2 20 5






Application:



1 oil, construction, raising, chemical industry warming piping

2 fence, apartment and greening
