High Efficiency Gabion Production Line Automatic Wrapped Edge Machine

Basic Information
Place of Origin: CHINA
Certification: ISO CE
Model Number: GBPL-2
Minimum Order Quantity: ONE SET
Packaging Details: Nude Packing& Fixed by iron wire
Delivery Time: 30 work days
Supply Ability: 10 sets/month
Working Width: 4300mm Mesh: 6x8, 8x10, 10x12cm Etc
Overall Dimension: 4.6x0.6x1.17m Max Wire Dia: 5.0mm
Name: Hexagonal Wire Netting Machine Power: 5kw
High Light:

wire mesh cutting machine


steel wire mesh machine

Automatic Gabion Box Production Line For Machine With  Max Width 4.5M



Standard Machines:


1. Main netting machine

2. Winding machine

3. Wire tension device

4. Spiral coiling machine


Optional Machines:


5. Hydraulic packing machine

6. Wire spools

7. Work platform

8. Netting straightening machine

9. Netting cutting machine

10. Wrapped edge machine

11. Selvedge cutting machine

12. PVC coating line




Overall dimension 4.6x0.6x1.17m
Mesh 6x8, 8x10, 10x12cm etc
Power 5kw
Weight 1.8tons
Speed of production 40 r/min


Machine Descrition:


This equipment is the necessary equipment of the hexagonal wire mesh production line. It is used for the structural deformation of the forming hexagonal wire mesh, and adjustment of wire's starting deformation, it also can reduce the deformation of wire stress, have good effect. This machine has separate transmission, manual adjusting, the aperture of pressing roll, handle control bottom, it can realize the upper roller's alone adjustment, inching and continuous sending into the material roller, it is easy to cooperate and grasp.


wrapped edge machine

1 usage: gabion production line
2 application: wrapped the edge of gabion box

wrapped edge machine is widely used in the heavy-duty hexagonal wire netting machine. This equipment has reasonable design, smooth operation, saving labour, high effectiveness, easy operation performance etc.



Competitive Advantage:


1. All the parts of netting sheet cutting machine are processed by our own factory; no parts


were sending to outside to process, so the quality can be ensured.


2. We can provide 12months guarantee for all the equipments, and if customer need, we will


arrange our technician to help install the machines in your country, and also could supply all


the spare parts with cost price if customer need.

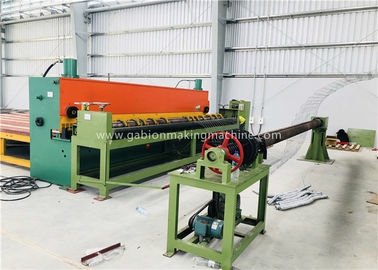

High Efficiency Gabion Production Line Automatic Wrapped Edge Machine 0
