High Speed Gabion Production Line / Wire Mesh Cutting Machine 5.5kw 3000kg

Basic Information
Place of Origin: CHINA
Certification: ISO CE
Model Number: GBPL-2
Minimum Order Quantity: ONE SET
Packaging Details: Nude Packing& Fixed by iron wire
Delivery Time: 30 work days
Supply Ability: 10 sets/month
Woking Width: 2m Power: 5.5kw
Weight: 3000kg Overall Size: 2340mmx1050mmx2350mm
Name: Wire Mesh Weaving Machine Type: Electrical Systems
High Light:

wire mesh cutting machine


galvanized wire machine

5.5kw High Speed Gabion Production Line / Gabion Mesh Cutting Machine Electrical Systems





1. The Gabion Mesh Cutting Machine is using for gabion mesh's cutting;

2. it is an essential machine for gabion production line.

3. Netting Sheet Cutting Machinery Cutting Sheet without manual work


1. Max Weaving Width: 4300mm
2. It can use Siemens PLC Control System according customers demands!
3.This machine is our new style, it can weave double twist and three twist gabion mesh on the same machine and also can weave the mesh that 4.0mm diameter.
4.This type machine is using spiral coil.



Operating principle


When the machine work, oil pump unit provide the pressure oil via safety valve limit the pressure and enter

manual reversing valve, when manual reversing valve work on the left, pressure oil enter on the oil cylinder

via piston, piston rod pull pressure plate run downwards, the down oil of the oil cylinder stream back to tank

via reversing valve. When Manual reversing valve work in the middle, the up and down oil of oil cylinder will

be closed by reversing valve, pressure plate can keep pressure and stay on anywhere, oil cylinder

discharge loads via reversing valve, when reversing valve work on the right, pressure oil enter down part of

oil cylinder pull pressure plate run upwards, the up part oil of the oil cylinder flow back to tank via reversing


Above of the oil cylinder arranges the middle device, can decrease the pressure and run to the up limit.



Competitive Advantage:


1. Our company invented the first special equipment of double twisted wire netting making machine in

China . And until now, we have persevered in this area

of gabion machine making for 15 years.

2. All the parts of gabion machine are processed by our own factory; no parts were send to outside to

process, so the quality can be ensured.

3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our

technician to help install the machines in your country, and also could supply all the spare parts with cost

price if customer need.

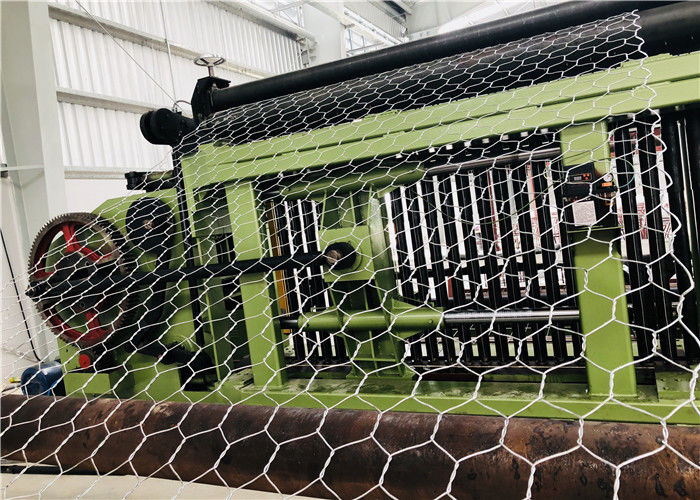

High Speed Gabion Production Line / Wire Mesh Cutting Machine 5.5kw 3000kg 0
