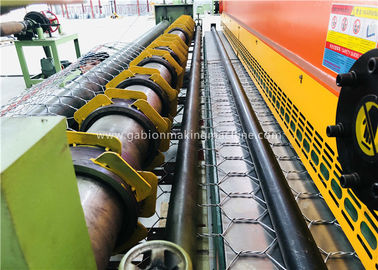

High Speed Hexagonal Mesh Machine , 22kw Double Twist Gabion Wire Mesh Machine

High Speed Hexagonal Mesh Machine , 22kw Double Twist Gabion Wire Mesh Machine

    • High Speed Hexagonal Mesh Machine ,  22kw Double Twist Gabion Wire Mesh Machine
    • High Speed Hexagonal Mesh Machine ,  22kw Double Twist Gabion Wire Mesh Machine
  • High Speed Hexagonal Mesh Machine ,  22kw Double Twist Gabion Wire Mesh Machine

    Product Details:

    Place of Origin: CHINA
    Certification: ISO CE
    Model Number: GBPL-2

    Payment & Shipping Terms:

    Minimum Order Quantity: ONE SET
    Packaging Details: Nude Packing& Fixed by iron wire
    Delivery Time: 30 work days
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Wire Diameter: 1.6-4.0mm Spindle Speed: 25r/min
    Net Width: 4300mm Motor Power: 22.0kw
    Name: Wire Mesh Machine Twist: Double Twist

    Double Twist Net Gabion Production Line High Speed For Gabion Wire Mesh Machine 22kw



    Specifications:



    . Mesh size: 80x100mm
    3. Twist: Double twist
    4. Wire diameter: 1.6-4.0mm
    5. PVC wire diameter: 3.0-5.5mm
    6. Max. width: 4300mm
    7. Spindle Speed:25r/min
    8. Theoretic output: 3.5m/min
    9. Motor power: 22.0kw
    10. Weight: 15MT
    11. Dimensions: 8100mm x 1500mm x 2180mm






    Applications:



    The Gabion Mesh Cutting Machine is using for gabion mesh's cutting; it is an essential machine for gabion

    production line. Netting Sheet Cutting Machinery Cutting Sheet without manual work



    Gabion Machine is one kind of special equipment for twisting metal wire hexagonal mesh with big wire, large mesh and wide breadth. The product has widely function, with its good corrosion resistance and oxidation resistance, it serves well as strengthening, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, chemical, breeding, garden and food processing industries.

    The KS series gabion mesh machines include four main standard parts: Main netting machine, Winding machine, Wire tension device and Spiral coiling machine, it is designed to make gabion of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, GALFAN coated is available.



    Competitive Advantage:



    1. Our company invented the first special equipment of double twisted wire netting making machine in

    China . And until now, we have persevered in this area

    of gabion machine making for 15 years.

    2. All the parts of gabion machine are processed by our own factory; no parts were send to outside to

    process, so the quality can be ensured.

    3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our

    technician to help install the machines in your country, and also could supply all the spare parts with cost

    price if customer need.



    High Speed Hexagonal Mesh Machine ,  22kw Double Twist Gabion Wire Mesh Machine
