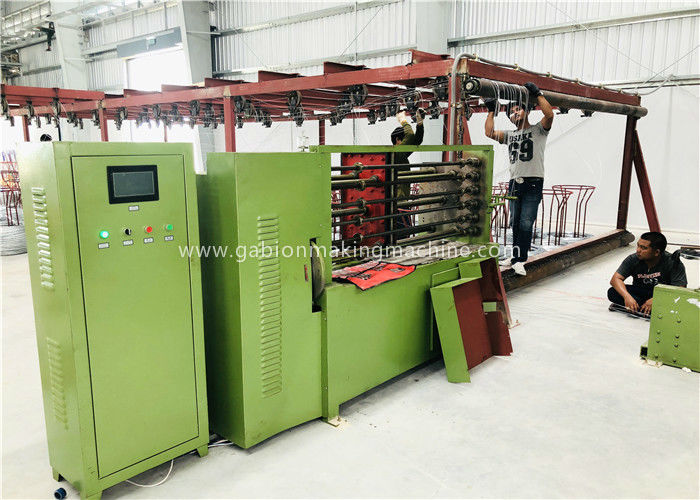

Automatic 1200mm Hexagonal Wire Netting Machine Residence With Stop System
Descrition:
1 Mesh sizes: 22x33mm
2 Max netting width: 1200mm
3 Max galvanized wire diameter: 31.2mm
4 Power: 3kW
5 Theoretic output: 83m/hr
6 Automatic stop system (option): when the coiling finished or wire broken, the machine will stop automatically
7 Infrared ray safety protection system (option)
8 Automatic oil system
Specifications:
Light Hexagonal Wire Netting Machine is the professional machine to produce small wire diameter of
hexagonal mesh. The mesh is main used as fence, residence and the protecting fo the garden.
| Style | Specification | Mesh size | Width | Wire diamater |
Twisting Lines |
Spindle Speed | power of motor |
Theoretic output |
| (mm) | (mm) | (mm) | r | (r/min) | (kw) | (m/h) | ||
| LNWL-1015-2 | 1/2' | 15x18 | 1200 | 0.8 | 3 | 33 | 3 | 51 |
| LNWL-1018-2 | 5/8' | 18x5 | 0.9 | 3 | 67 | |||
| LNWL-1022-2 | 3/4' | 22x33 | 1.2 | 3/5 | 83 | |||
| LNWL-1027-2 | 1' | 27x41 | 3/5 | 100 | ||||
| LNWL-1032-2 | 1/1/4' | 32x52 | 3/5 | 122 | ||||
Competitive Advantage:
1. Our company invented the first special equipment of double twisted wire netting
making machine in China (patent number: ZL99229381.2 and ZL00267066.5). And until now,
we have persevered in this area of gabion machine making for 15 years.
2. All the parts of gabion machine are processed by our own factory; no parts were sending to
outside to process, so the quality can be ensured.
3. We can provide 12months guarantee for all the equipments, and if customer need, we will
arrange our technician to help install the machines in your country, and also could supply all
the spare parts with cost price if customer need.
Our products are sold all over the world, you can rest assured.
