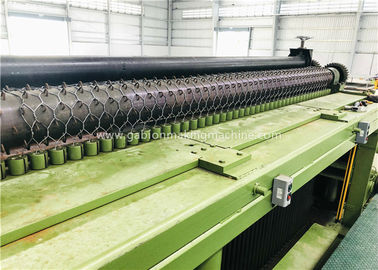

1200mm Width Gabion Making Machine / Gabion Wire Mesh Machine Mesh Sizes 22x33mm

Basic Information
Place of Origin: CHINA
Certification: CE ,ISO
Model Number: LNWL-2055-2
Minimum Order Quantity: one set
Packaging Details: Nude packing&fixed by iron wire
Delivery Time: 30 work days
Payment Terms: L/C,T/T
Supply Ability: 10 sets/month
Mesh Sizes: 22x33mm Width: 1200mm
Wire Diamater: 31.2mm Name: Hexagonal Wire Netting Making Machine
Speed: 83m/hr Type: Automatic Oil System
High Light:

hexagonal mesh machine


automatic chain link fence machine

Mesh Sizes 22x33mm Gabion Wire Mesh Machine For Steel Rod , Hexagonal Wire Netting Machine



1 Mesh sizes: 22x33mm
2 Max netting width: 1200mm
3 Max galvanized wire diameter: 31.2mm
4 Power: 3kW
5 Theoretic output: 83m/hr
6 Automatic stop system (option): when the coiling finished or wire broken, the machine will stop automatically
7 Infrared ray safety protection system (option)
8 Automatic oil system





Light Hexagonal Wire Netting Machine is the professional machine to produce small wire diameter of

hexagonal mesh. The mesh is main used as fence, residence and the protecting fo the garden.


Style Specification Mesh size Width Wire diamater Twisting Lines Spindle Speed power of motor Theoretic output
(mm) (mm) (mm) r (r/min) (kw) (m/h)
LNWL-1015-2 1/2' 15x18 1200 0.8 3 33 3 51
LNWL-1018-2 5/8' 18x5 0.9 3 67
LNWL-1022-2 3/4' 22x33 1.2 3-5 83
LNWL-1027-2 1' 27x41 3-5 100
LNWL-1032-2 1/1/4' 32x52 3-5 122
LNWL-1039-2 1/1/2' 39x61 3 142
LNWL-1055-2 2' 55x70 1.5 3 162
LNWL-1078-2 3' 78x86 3-5 194
