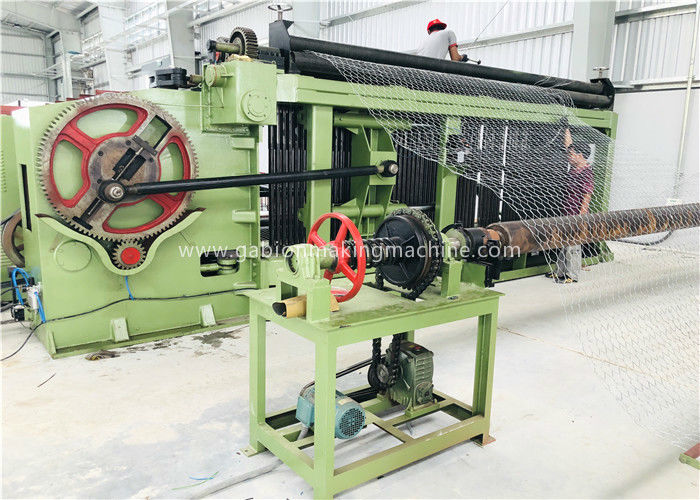

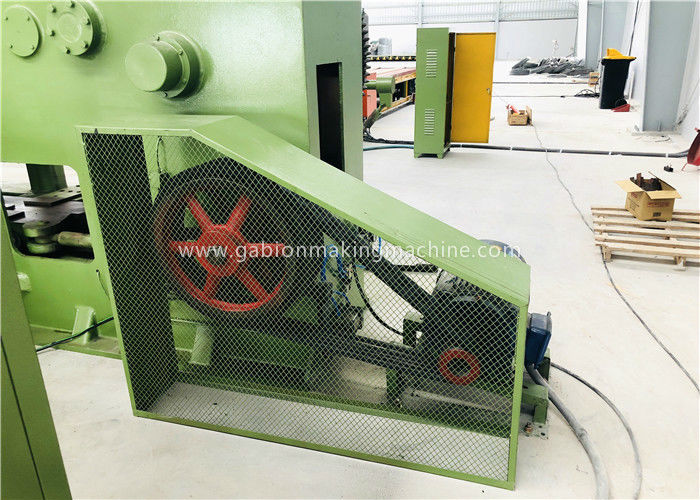

Mesh Sizes 60x80mm Gabion Wire Mesh Machine For Steel Rod , Hexagonal Wire Netting Machine
Descrition:
1 Mesh sizes: 60x80mm
2 Max netting width: 4500mm
3 Max galvanized wire diameter: 1.6-2.7mm
4 Power: 22kW
5 Theoretic output: 165m/hr
6 Automatic stop system (option): when the coiling finished or wire broken, the machine will stop automaticall
Light Hexagonal Wire Netting Machine is the professional machine to produce small wire diameter of
hexagonal mesh. The mesh is main used as fence, residence and the protecting fo the garden.
|
Model
|
Mesh Size(mm) | Max. Width(mm) | Wire diameter(mm) | Twisting Number | Main Drive Shaft Speed(r/min) | Motor Capacity(KW) | Theoretical Speed(m/h) |
| LNWL23-60-2 | 60*80 | 4300 | 1.6-3.0 | 3 | 25 | 22 | 165 |
| LNWL23-80-2 | 80*100 | 1.6-3.0 | 195 | ||||
| LNWL23-100-2 | 100*120 | 1.6-3.5 | 225 | ||||
| LNWL23-1200-2 | 120*150 | 1.6-3.2 | 20 | 255 | |||
| LNWL43-120-3 | 120*150 | 4300 | 1.6-3.2 | 5 | 20 | 22 | 255 |
