| Place of Origin: | CHINA |
|---|---|
| Certification: | CE ,ISO |
| Model Number: | LNWL-2055-2 |
| Minimum Order Quantity: | one set |
| Packaging Details: | Nude packing&fixed by iron wire |
| Delivery Time: | 30 work days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 10 sets/month |
| Mesh Size: | 27x41mm | Mesh Wdith: | 2200mm |
|---|---|---|---|
| Max Wire Dia: | 1.2mm | Machine Motor: | 3kw |
| Name: | Hexagonal Wire Netting Machine | Theoretic Output: | 100m/hr |
| High Light: | hexagonal mesh machine,wire net making machine |
||

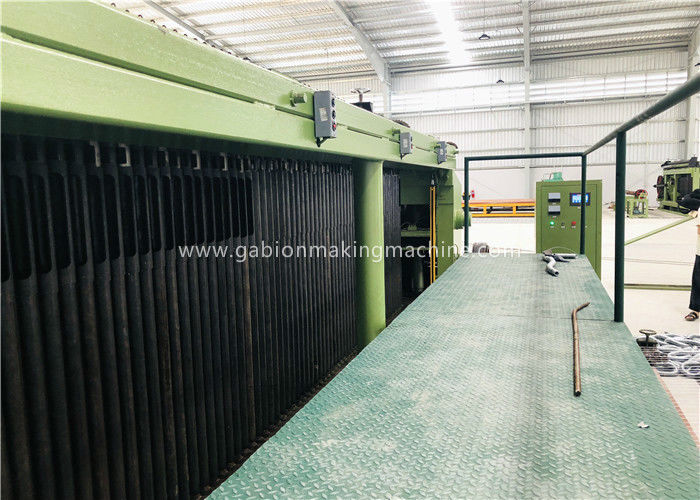

Zinc Hexagonal Wire Netting Machine Automatic Oil System , PLC Control System Touch Screen
Descrition:
1.The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh
sizes.
2. The possible coatings are heavily galvanized and zinc.
3 .For high corrosion resistance, zinc and PVC coated wire is available.
Specifications:
| Style | Specification | Mesh size | Width | Wire diamater |
Twisting Lines |
Spindle Speed | power of motor |
Theoretic output |
| (mm) | (mm) | (mm) | r | (r/min) | (kw) | (m/h) | ||
| LNWL-1015-2 | 1/2' | 15x18 | 1200 | 0.8 | 3 | 33 | 3 | 51 |
| LNWL-1018-2 | 5/8' | 18x5 | 0.9 | 3 | 67 | |||
| LNWL-1022-2 | 3/4' | 22x33 | 1.2 | 3/5 | 83 | |||
| LNWL-1027-2 | 1' | 27x41 | 3/5 | 100 | ||||
| LNWL-1032-2 | 1/1/4' | 32x52 | 3/5 | 122 | ||||
| LNWL-1039-2 | 1/1/2' | 39x61 | 3 | 142 | ||||
| LNWL-1055-2 | 2' | 55x70 | 3 | 162 | ||||
| LNWL-1078-2 | 3' | 78x86 | 3/5 | 194 | ||||
Advantages:
1. New type double rack drive gabion machine
2. High efficiency: theoretic output=255M/H
3. PLC control system touch screen(Option)
4. Infrared ray safety(Option)
5. Automatic stop system (Option)
6. Automatic oil system
Competitive Advantage:
1. Our company invented the first special equipment of double twisted wire netting
making machine in China (patent number: ZL99229381.2 and ZL00267066.5). And until now,
we have persevered in this area of gabion machine making for 15 years.
2. All the parts of gabion machine are processed by our own factory; no parts were sending to
outside to process, so the quality can be ensured.
3. We can provide 12months guarantee for all the equipments, and if customer need, we will
arrange our technician to help install the machines in your country, and also could supply all
the spare parts with cost price if customer need.
