| Place of Origin: | CHINA |
|---|---|
| Certification: | CE ,ISO |
| Model Number: | LNWL-2055-2 |
| Minimum Order Quantity: | one set |
| Packaging Details: | Nude packing&fixed by iron wire |
| Delivery Time: | 30 work days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 10 sets/month |
| Mesh Size: | 120x150mm | Mesh Wdith: | 2300mm |
|---|---|---|---|
| Max Wire Dia: | 1.6-3.5mm | Machine Motor: | 11Kw |
| Name: | Hexagonal Wire Netting Machine | Theoretic Output: | 20r/min |
| High Light: | hexagonal mesh machine,automatic chain link fence machine |
||

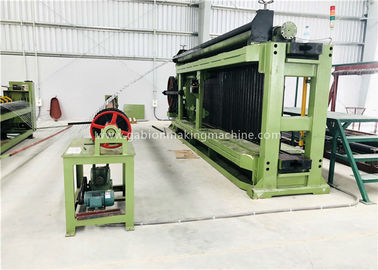

Construction Automatic Oil System Hexagonal Wire Netting Machine Double Twist 11Kw
Descrition:
|
1. Mesh sizes: 120x150mm 2. twist: double twist 3. Max. netting width: 2300mm 4. Max. galvanized wire diameter: 1.6-3.5mm 5. Max PVC wire diameter: 4.5mm 6. Spindle Speed:20r/min 7. Power: 11Kw |
1. Gabion Machine widely used in oil, construction, raising, chemical industry warming piping and etc.
2. It is also used in fence, apartment and greening.
3. The hexagonal wire netting can be used in protect sea wall, hillside, road, bridge and civil engineering.
4. It is one of the best against flooding material.
Specifications:
| Style | Specification | Mesh size | Width | Wire diamater |
Twisting Lines |
Spindle Speed | power of motor |
Theoretic output |
| (mm) | (mm) | (mm) | r | (r/min) | (kw) | (m/h) | ||
| LNWL-1015-2 | 1/2' | 15x18 | 1200 | 0.8 | 3 | 33 | 3 | 51 |
| LNWL-1018-2 | 5/8' | 18x5 | 0.9 | 3 | 67 | |||
| LNWL-1022-2 | 3/4' | 22x33 | 1.2 | 3/5 | 83 | |||
| LNWL-1027-2 | 1' | 27x41 | 3/5 | 100 | ||||
| LNWL-1032-2 | 1/1/4' | 32x52 | 3/5 | 122 | ||||
| LNWL-1039-2 | 1/1/2' | 39x61 | 3 | 142 | ||||
| LNWL-1055-2 | 2' | 55x70 | 3 | 162 | ||||
| LNWL-1078-2 | 3' | 78x86 | 3/5 | 194 | ||||
Advantages:
1. New type double rack drive gabion machine
2. High efficiency: theoretic output=255M/H
3. PLC control system touch screen(Option)
4. Infrared ray safety(Option)
5. Automatic stop system (Option)
6. Automatic oil system
