1200mm Mesh Width Hexagonal Mesh Machine For Making Double Twist Gabion Boxes

Basic Information
Place of Origin: CHINA
Certification: CE ,ISO
Model Number: LNWL-2055-2
Minimum Order Quantity: one set
Packaging Details: Nude packing&fixed by iron wire
Delivery Time: 30 work days
Payment Terms: L/C,T/T
Supply Ability: 10 sets/month
Mesh Size: 15x18mm Mesh Wdith: 1200mm
Max Wire Dia: 0.8mm Machine Motor: 3kw
Name: Hexagonal Wire Machine Theoretic Output: 33m/hr
High Light:

hexagonal mesh machine


automatic chain link fence machine


Automatic 1200mm Hexagonal Wire Netting Machine Residence With Stop System





1. Mesh size: 15x18mm

2. Max width: 1200mm
3. Automatic, high efficiency
4. Inside netting pinions
5. Overload protect cluth



  • Automatic, high efficiency
  •  Automatic oil system
  • Automatic stop system (Option)
  • Turbine protection system (Option)
  • 1Infrared ray safety (Option)





Light Hexagonal Wire Netting Machine is the professional machine to produce small wire diameter of

hexagonal mesh. The mesh is main used as fence, residence and the protecting fo the garden.


Style Specification Mesh size Width Wire diamater



Spindle Speed power of motor



(mm) (mm) (mm) r (r/min) (kw) (m/h)
LNWL-1015-2 1/2' 15x18 1200 0.8 3 33 3 51
LNWL-1018-2 5/8' 18x5 0.9 3 67
LNWL-1022-2 3/4' 22x33 1.2 3/5 83
LNWL-1027-2 1' 27x41 3/5 100
LNWL-1032-2 1/1/4' 32x52 3/5 122




Competitive Advantage:


1. Our company invented the first special equipment of double twisted wire netting


making machine in China (patent number: ZL99229381.2 and ZL00267066.5). And until now,


we have persevered in this area of gabion machine making for 15 years.


2. All the parts of gabion machine are processed by our own factory; no parts were sending to


outside to process, so the quality can be ensured.


3. We can provide 12months guarantee for all the equipments, and if customer need, we will


arrange our technician to help install the machines in your country, and also could supply all


the spare parts with cost price if customer need.

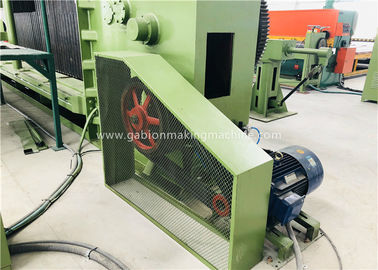

1200mm Mesh Width Hexagonal Mesh Machine For Making Double Twist Gabion Boxes 0
