Hexagonal Wire Gabion Box Machine LNWL43-100-2 Various Width ISO Approved

Hexagonal Wire Gabion Box Machine LNWL43-100-2 Various Width ISO Approved

  • High Light

    wire mesh making machine

    ,

    automatic wire netting machine

  • Power
    15kw
  • Mesh Size
    00X120mm

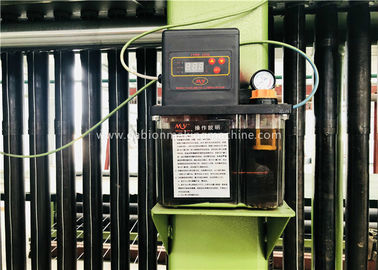

  • Lubricating
    Automatic Oil System
  • Twist
    3 Twist
  • Name
    Gabion Making Machine
  • Type
    Automatic Oil System
  • Place of Origin
    China
  • Certification
    ISO,CE
  • Model Number
    LNWL43-100-2
  • Minimum Order Quantity
    one set
  • Packaging Details
    Nude packing and fixed by iron wire
  • Delivery Time
    30 work days
  • Supply Ability
    10 sets/month

Hexagonal Wire Gabion Box Machine LNWL43-100-2 Various Width ISO Approved

3 Twist Bridge Gabion Basket Machines with Automatic Oil System 800X120mm Mesh size





Descrition:



1.  The gabion box machine is widely used in oil, construction, raising, chemical industry, warming piping and etc. It is also used in fence, apartment and greening.

2.  The hexagonal wire netting can be used in protect seawall, hillside, road, bridge and civil engineering.

3.  It is one of the best against flooding materials.



The series gabion box machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.





 Specifications:



Style Mesh size Width Wire diamater Spindle Speed Twist power of motor Theoretic output
(mm) (mm) (mm) (r/min) (r ) (kw) (m/h)
LNWL23-60-2 60X80 2300 1.6-3.2 25 3 11 165
LNWL23-80-2 80X100 1.6-4.0 3 195
LNWL23-100-2 100X120 1.6-4.0 3 225
LNWL23-120-2 120X150 1.6-4.2 20 3 255
LNWL33-60-2 60X80 3300 1.6-3.2 25 3 15 165
LNWL33-80-2 80X100 1.6-4.0 3 195
LNWL33-100-2 100X120 1.6-4.0 3 225
LNWL33-120-2 120X150 1.6-4.2 20 3 255



Advantage:





  • All the parts of gabion machine are processed by our own factory; no parts were send to outside to
  • process, so the quality can be ensured.
  •
  •  We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our
  • technician to help install the machines in your country, and also could supply all the spare parts with cost
  • price if customer need.
  •
