Hillside Gabion Box Machine Corrosion Resistance With Automatic 25r/Min Spindle Speed

Hillside Gabion Box Machine Corrosion Resistance With Automatic 25r/Min Spindle Speed

  • Highlight

    automatic wire mesh machine

    ,

    wire mesh making machine

  • Power
    11kw
  • Mesh Size
    100X120mm
  • Spindle Speed
    25r/min
  • Twist
    3 Twist
  • Name
    Gabion Box Machine
  • Type
    Automatic Oil System
  • Place of Origin
    China
  • Certification
    ISO,CE
  • Model Number
    LNWL23-120-2
  • Minimum Order Quantity
    one set
  • Packaging Details
    Nude packing and fixed by iron wire
  • Delivery Time
    30 work days
  • Supply Ability
    10 sets/month

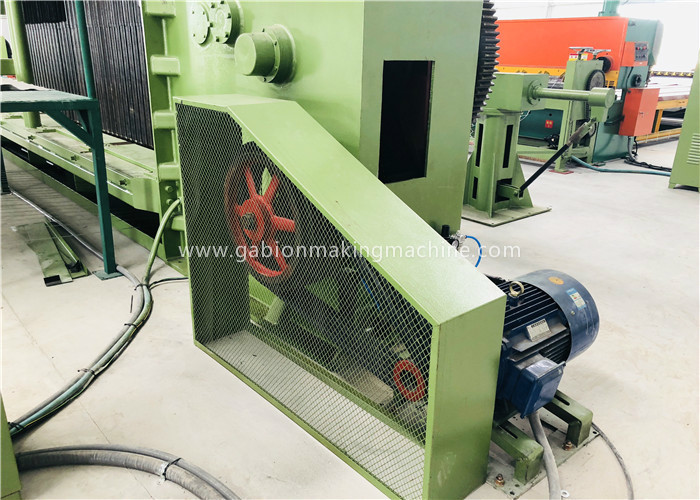

Hillside Gabion Box Machine Corrosion Resistance With Automatic 25r/Min Spindle Speed

Hillside 3 Twist Gabion Basket Machines with Automatic 25r/min Spindle Speed





Descrition:



The series gabion box machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.



Application:



The gabion box machine is widely used in oil, construction, raising, chemical industry, warming piping and. etc. It is also used in fence, apartment and greening. The hexagonal wire netting can be used in protect sea wall, hillside, road, bridge and civil engineering. It is one of the best against flooding materials.









 Specifications:



Style Mesh size Width Wire diamater Spindle Speed Twist power of motor Theoretic output
(mm) (mm) (mm) (r/min) (r ) (kw) (m/h)
LNWL23-60-2 60X80 2300 1.6-3.2 25 3 11 165
LNWL23-80-2 80X100 1.6-4.0 3 195
LNWL23-100-2 100X120 1.6-4.0 3 225
LNWL23-120-2 120X150 1.6-4.2 20 3 255
LNWL33-60-2 60X80 3300 1.6-3.2 25 3 15 165
LNWL33-80-2 80X100 1.6-4.0 3 195
LNWL33-100-2 100X120 1.6-4.0 3 225
LNWL33-120-2 120X150 1.6-4.2 20 3 255



Competitive Advantage:



1. Our company invented the first special equipment of double twisted wire netting



making machine in China  And until now,



we have persevered in this area of gabion machine making for 15 years.



2. All the parts of gabion machine are processed by our own factory; no parts were sending to



outside to process, so the quality can be ensured.



3. We can provide 12months guarantee for all the equipments, and if customer need, we will



arrange our technician to help install the machines in your country, and also could supply all



the spare parts with cost price if customer need



Hillside Gabion Box Machine Corrosion Resistance With Automatic 25r/Min Spindle Speed 0
