| Place of Origin: | China |
|---|---|
| Certification: | ISO,CE |
| Model Number: | LNWL43-100-2 |
| Minimum Order Quantity: | one set |
| Packaging Details: | Nude packing and fixed by iron wire |
| Delivery Time: | 30 work days |
| Supply Ability: | 10 sets/month |
| Power: | 30kw | Mesh Size: | 120X150mm |
|---|---|---|---|
| Lubricating: | Automatic Oil System | Spring Machine: | 6 Bars With Servo Motor |
| Max Mesh Wdith: | 4300mm | Speed: | 22 R/min |
| High Light: | automatic wire mesh machine,wire mesh making machine |
||

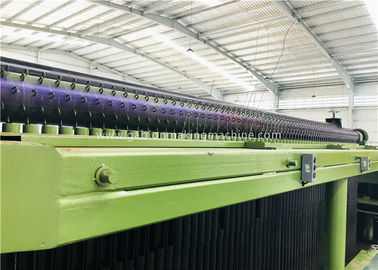

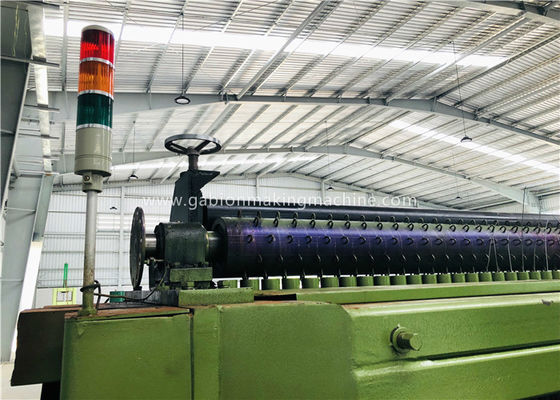

PLC Automatic Control Gabion Box Machine For 120X150mm Wire Mesh Weaving Machine
Descrition:
The series gabion box mesh machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC coated wire is available.
|
1. Max Mesh Wdith:4300mm 2. Mesh Size:120X150mm 3. Motor power:30kw 4. Machine Speed: 22 r/min 5. Automatic oil system |
Machine Specifications:
| Style | Mesh size | Width | Wire diamater | Spindle Speed | power of motor | Theoretic output |
| (mm) | (mm) | (mm) | (r/min) | (kw) | (m/h) | |
| LNWL23-60-2 | 60X80 | 2300 | 1.6-3 | 25 | 11 | 165 |
| LNWL23-80-2 | 80X100 | 1.6-3 | 195 | |||
| LNWL23-100-2 | 100X120 | 1.6-3.2 | 225 | |||
| LNWL23-120-2 | 120X150 | 1.6-3.5 | 20 | 255 | ||
| LNWL33-60-2 | 60X80 | 3300 | 1.6-2.8 | 25 | 15 | 165 |
| LNWL33-80-2 | 80X100 | 1.6-3 | 195 | |||
| LNWL33-100-2 | 100X120 | 1.6-3.2 | 225 | |||
| LNWL33-120-2 | 120X150 | 1.6-3.5 | 20 | 255 | ||
| LNWL43-60-2 | 60X80 | 4300 | 1.6-2.8 | 25 | 22 | 165 |
| LNWL43-80-2 | 80X100 | 1.6-3 | 195 | |||
| LNWL43-100-2 | 100X120 | 225 | ||||
| LNWL43-120-2 | 120X150 | 1.6-3.2 | 20 | 255 |
Advantage:
1.Gabion mesh machine adopts PLC automatic control ,which have smooth operation;
2.Low noise and high efficiency;
3.Long service life.
