Professional Gabion Mesh Machine Double Twist For 4.2mm PVC Wire Dia

Professional Gabion Mesh Machine Double Twist For 4.2mm PVC Wire Dia

  • Highlight

    wire mesh welding machine

    ,

    gabion wire mesh machine

  • Max Mesh Width
    4300mm
  • Motor Power
    20kw
  • Speed
    20r/min
  • Type
    PLC Control System Touch Screen(Option)
  • Name
    Welding Mesh Machine
  • Application
    Bridge And Civil Engineering
  • Place of Origin
    China
  • Certification
    ISO,CE
  • Model Number
    LNWL57-100-2
  • Minimum Order Quantity
    One set
  • Packaging Details
    Nude packing& fixed by iron wire
  • Delivery Time
    30 work days

Professional Gabion Mesh Machine Double Twist For 4.2mm PVC Wire Dia

4.2mm PVC Wire Dia Gabion Mesh Machine , double twist hexagonal wire mesh making machine



Descrition:



  1. the gabion mesh machine is one kind of special equipment for twisting metal wire hexagonal mesh with big wire, big mesh and wide breadth.
  2. Gabion mesh machine is specialization in production of hexagonal wire mesh.
  3. The rawmaterial: galvanized iron wire ,stainless steel wire ,plastic coating wire





Specifications :



Model

Mesh size

(mm)

Max width

(mm)

Wire dia

(mm)

Twisted No.

Main axis speed

(r/min)

Power

(KW)

Theoretical speed

(m/h)

LNWL23-60-2 60*80 2300 1.6-3.0 3 25 11 165
LNWL23-80-2 80*100 1.6-3.0 195
LNWL23-100-2 100*120 1.6-3.2 225
LNWL23-1200-2 120*150 1.6-3.5 20 255
LNWL33-60-2 60*80 3300 1.6-2.8 25 15 165
LNWL33-80-2 80*100 1.6-3.0 195
LNWL33-100-2 100*120 1.6-3.2 225
LNWL33-120-2 120*150 1.6-3.5 20 255
LNWL43-60-2 60*80 4300 1.6-2.8 25 22 165
LNWL43-80-2 80*100 1.6-3.0 195
LNWL43-100-2 100*120 1.6-3.0 225
LNWL43-120-2 120*150 1.6-3.2 20 255





Applications:

The gabion mesh machine, is the professional equipment that produces hexagonal wire netting, its product
extensively used for petroleum, building, farming and chemical engineering industry, keep warm piping
and other piping, be also used for rounding column, residence and park greening safeguard etc..
Gabion mesh is still more available to manufacture the gabion mesh box and extensively used for safeguard
and backing sea dike, hillside, road , bridge and reservoir and others, it is the best material of the flood
control at the same time.

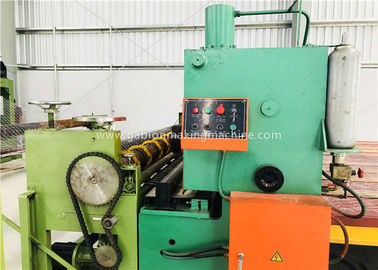

Professional Gabion Mesh Machine Double Twist For 4.2mm PVC Wire Dia 0
