Custom Made 2m Weaving Width Gabion Machine To 66x80mm 2.0mm Steel Wire

Basic Information
Brand Name: SUNRICH
Certification: CE
Model Number: LNWL23-66-2
Minimum Order Quantity: One set
Price: USD 31800-39800/ SET
Packaging Details: Nude packing with iron wire fixe
Delivery Time: 35-45 days
Payment Terms: L/C, T/T
Supply Ability: 10 SETS/MONTH
Weaving Width: 2000mm Mesh Size: 66x80mm
Wire Diameter: 1.6-2.8 Weight: 11.5t
Control: PLC Warranty: 1 Year
High Light:

high speed gabion machine


custom made gabion machine


custom made gabion mesh machine

Custom Made 2M Weaving Width Gabion Machine for 66x80mm With 2.0mm Steel Wire




This custom made gabion machine has more stronger machine frame and power for weaving 2.0mm steel wire 66x80mm gabion mesh, steel wire stretching resistance is mush stronger than galvanized wireand pvc coated wire.


1.Mesh size:66x80
2.Width: 2300mm max
3.Wire diameter: 1.6-2.8mm
The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.
We can manufacture gabion machine according to customer request.



Gabion machine


The series automatic gabion machine includes four main standard parts: Main netting machine, winding machine, wire tension device and spiral coiling machine, it can produce gabions of various widths and mesh sizes.Our machine is specially used to produce the large size and heavy duty hexagonal (galvanized, galfan & PVC wire) wire meshes for the fence and the stone gabions usage. It has several models for different sizes of meshes and the maximum netting width is up to 4.3 meters. We can also supply the complete production line for your whole netting workshop.


Specification of gabion mesh machine



Style Mesh size Width Wire diamater Spindle Speed Twist power of motor Theoretic output
(mm) (mm) (mm) (r/min) (r ) (kw) (m/h)
LNWL43-60-2ZX 60X80 4300 1.6-3.2 25 3 22 165
LNWL43-80-2ZX 80X100 1.6-4.0 3 195
LNWL43-100-2ZX 100X120 1.6-4.0 3 225
LNWL43-120-2ZX 120X150 1.6-4.2 20 3 255

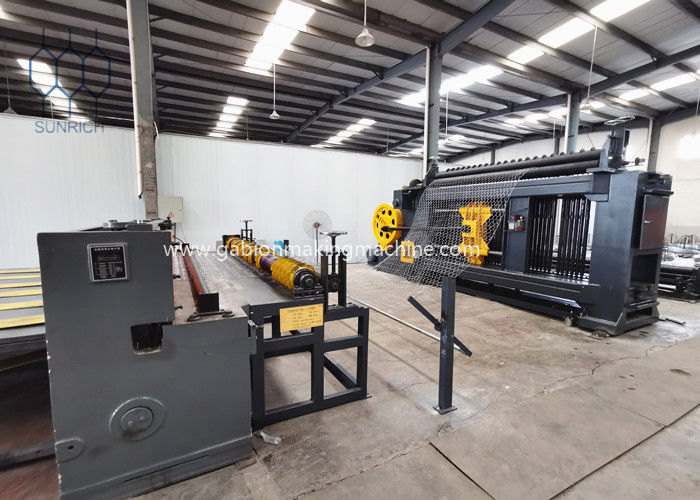

2M Width Gabion Machine Working Picture


Custom Made 2m Weaving Width Gabion Machine To 66x80mm 2.0mm Steel Wire 0



Installation and service:


We can dispatch our engineers to your factory for the installation of the machine and the training. About the detailed information of after-sales service, you can contact with our sales personnel.
