100x120mm Automatic Plc Gabion Production Line For 4500 Mm Width Gabion Mesh Sheet

Basic Information
Brand Name: SUNRICH
Certification: CE
Model Number: SRH-100
Minimum Order Quantity: one set
Price: USD 75000-88000/A SET
Packaging Details: Nude packing with inron wire fix
Delivery Time: 50-60 DAYS
Supply Ability: 4 SETS/MONTH
Mesh Size: 100x120mm Application: Gabion
Width: 4500mm After-sales Service Provided: Field Installation
Warranty: 1 Year Feature: Improve Gabion Output
High Light:

plc gabion production line


automatic gabion box machine


100x120mm gabion production line

100x120mm Automatic Gabion Production Line For 4500mm Width Gabion Mesh Sheet




1. This gabion production line is the necessary for gabion box producing.

2. This gabion production line is automatic from gabion mesh weaving to gabion box with PLC control

3. This gabion production line can improve output and save worker cost, becasue just use few worker can operate this production line.



Width: 4.5m

Servo Motor power: 3.8w

The diameter of wire: 1.6-4.0mm

Speed: 300-380 boxes/8 hours

Control system: automatic PLC and touch screen control


We professionally support gabion production line, Gabion product line is composed of heavy-duty

hexagonal wire mesh machine, netting sheet cutting machine, netting sheet straightening machine, wrapped

edge machine, gabion packing machine, and steel Rod Straightening Cutting Machine.

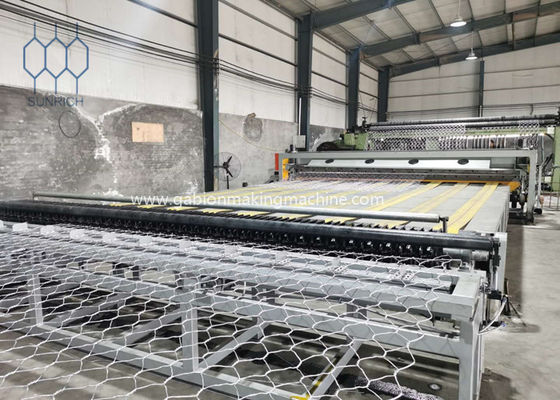

Automatic gabion box production line working picture

100x120mm Automatic Plc Gabion Production Line For 4500 Mm Width Gabion Mesh Sheet 0

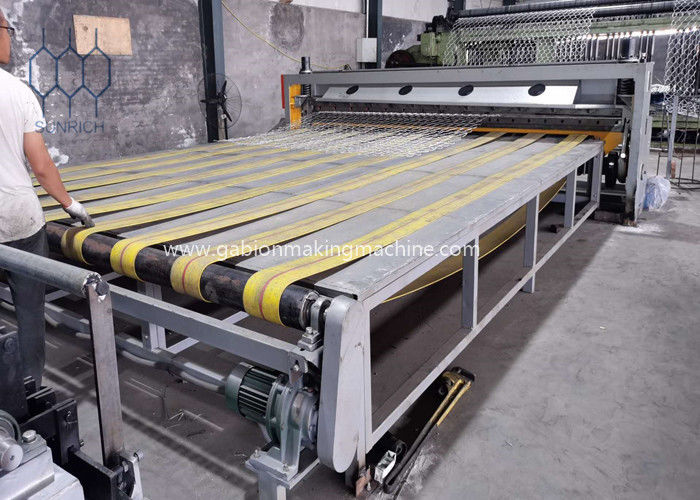

This equipment is the necessary equipment of the hexagonal wire mesh gabion production line. It is used for the structural deformation of the forming hexagonal wire mesh, and adjustment of wire's starting deformation, it also can reduce the deformation of wire stress, have good effect. This machine has separate transmission, manual adjusting, the aperture of pressing roll, handle control bottom, it can realize the upper roller's alone adjustment, inching and continuous sending into the material roller, it is easy to cooperate and grasp.


100x120mm Automatic Plc Gabion Production Line For 4500 Mm Width Gabion Mesh Sheet 1


Competitive Advantage:


1. All the parts of netting sheet cutting machine are processed by our own factory; no parts


were sending to outside to process, so the quality can be ensured.


2. We can provide 12months guarantee for all the equipments, and if customer need, we will


arrange our technician to help install the machines in your country, and also could supply all


the spare parts with cost price if customer need.
