Max 4.0mm Gi Wire 95x125mm Gabion Machine Line With 4500 Mm Mesh Weaving Width

Basic Information
Brand Name: SUNRICH
Certification: CE
Model Number: LNWL45-95-2
Minimum Order Quantity: One set
Price: USD 31800-39800/ SET
Packaging Details: Nude packing with iron wire fixe
Delivery Time: 35-45 days
Payment Terms: L/C, T/T
Supply Ability: 10 SETS/MONTH
Weaving Width: 4500mm Mesh Size: 95x125mm
Wire Diameter: 2.0-4.0 Weight: 15.t
Control: PLC Warranty: 1 Year
High Light:

gi gabion machine line


high speed gabion machine line


high speed gabion production line

Max 4.0mm GI Wire For 95X125mm Gabion Machine With 4500mm Mesh Weaving Width



Detail Specification:


1. Mesh size:95x125mm
2. Width: 4500mm max(also can customed to be 5700mm)
3. Wire diameter: 2.0-4.0mm
The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.
We can manufacture gabion machine according to customer request.




1. This new type gabion machine use new type electrical clutch, this new clutch has no bearing inside so will not broken.


2. This new heavy type gabion machine has more stronger machine frame and power for weaving 4.0mm steel wire 95x125mm gabion mesh, steel wire stretching resistance is mush stronger than galvanized wireand pvc coated wire.

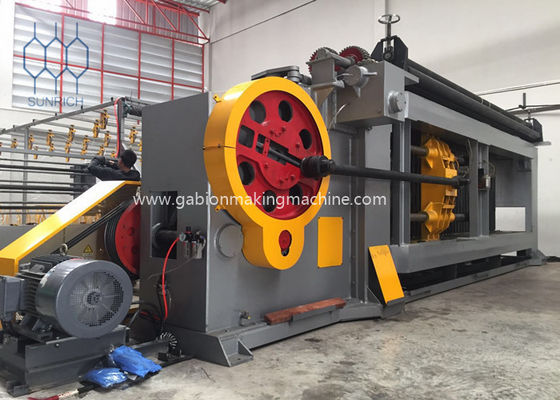

Max 4.0mm Gi Wire 95x125mm Gabion Machine Line With 4500 Mm Mesh Weaving Width 0




Gabion machine


The series automatic gabion machine includes four main standard parts: Main netting machine, winding machine, wire tension device and spiral coiling machine, it can produce gabions of various widths and mesh sizes.Our machine is specially used to produce the large size and heavy duty hexagonal (galvanized, galfan & PVC wire) wire meshes for the fence and the stone gabions usage. It has several models for different sizes of meshes and the maximum netting width is up to 4.5 meters. We can also supply the complete production line for your whole netting workshop.



Specification of gabion mesh machine



Style Mesh size Width Wire diamater Spindle Speed Twist power of motor Theoretic output
(mm) (mm) (mm) (r/min) (r ) (kw) (m/h)
LNWL45-60-2 60X80 4300 1.6-3.2 25 3 22 165
LNWL45-80-2 80X100 1.6-4.0 3 195
LNWL45-100-2 100X120 1.6-4.0 3 225
LNWL45-120-2 120X150 1.6-4.2 20 3 255




Installation and service:


We can dispatch our engineers to your factory for the installation of the machine and the training. About the detailed information of after-sales service, you can contact with our sales personnel.
