Five twist Gabion Mesh Machine With Automatic PLC control system for 4500mm Mesh Weaving Width
Gabion machine
The series five twist automatic gabion machine includes four main standard parts: Main netting machine, winding machine, wire tension device and spiral coiling machine, it can produce gabions of various widths and mesh sizes.Our machine is specially used to produce the large size and heavy duty hexagonal (galvanized, galfan & PVC wire) wire meshes for the fence and the stone gabions usage. It has several models for different sizes of meshes and the maximum netting width is up to 4.5 meters. We can also supply the complete production line for your whole netting workshop.
Detail Specification of gabion mesh machine
| Style | Mesh size | Width | Wire diamater | Spindle Speed | Twist | power of motor | Theoretic output |
| (mm) | (mm) | (mm) | (r/min) | (r ) | (kw) | (m/h) | |
| LNWL43-60-2 | 60X80 | 4300 | 1.6-3.2 | 25 | 5 | 22 | 165 |
| LNWL43-80-2 | 80X100 | 1.6-4.0 | 5 | 195 | |||
| LNWL43-100-2 | 100X120 | 1.6-4.0 | 5 | 225 | |||
| LNWL43-120-2 | 120X150 | 1.6-4.2 | 20 | 5 | 255 |
Description
1.Five twist
2.Mesh size:106x125
3.Width: 4500mm max
4.Wire diameter: 2.0-4.0mm
The series five twist gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.
We can manufacture gabion machine according to customer request.

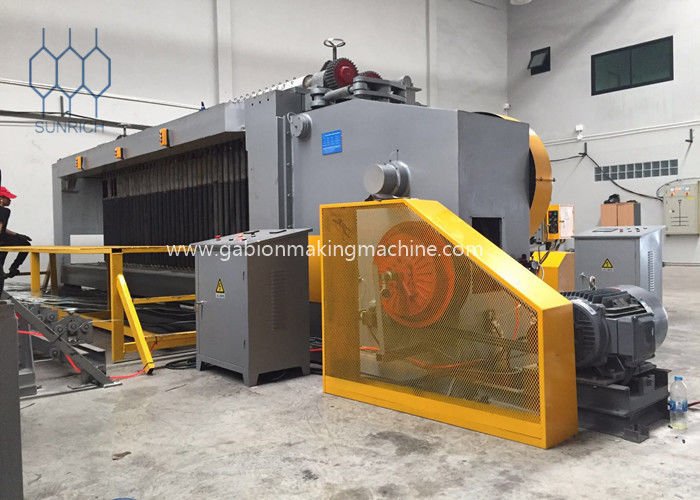

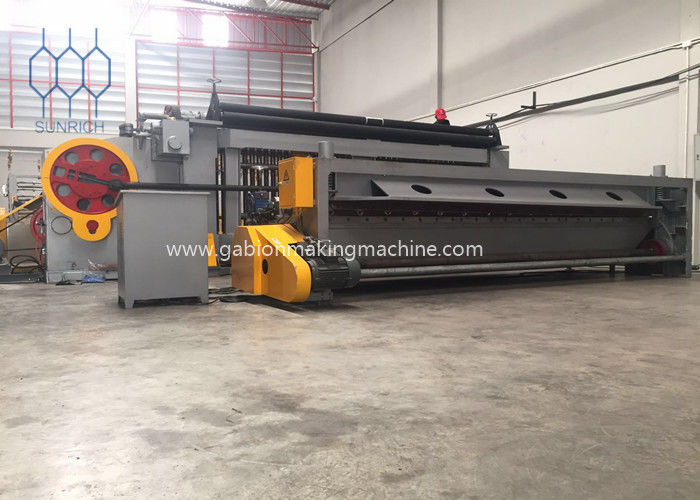

Five Twist Gabion machine Picture
Installation and service:
We can dispatch our engineers to your factory for the installation of the machine and the training. About the detailed information of after-sales service, you can contact with our sales personnel.
Our products are sold all over the world, you can rest assured.
