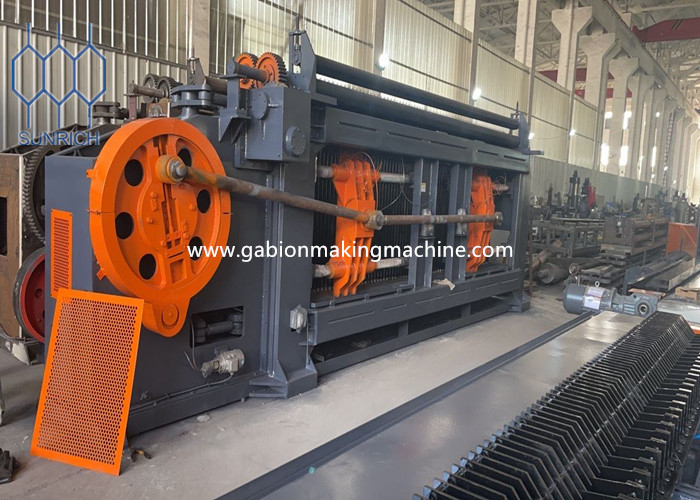

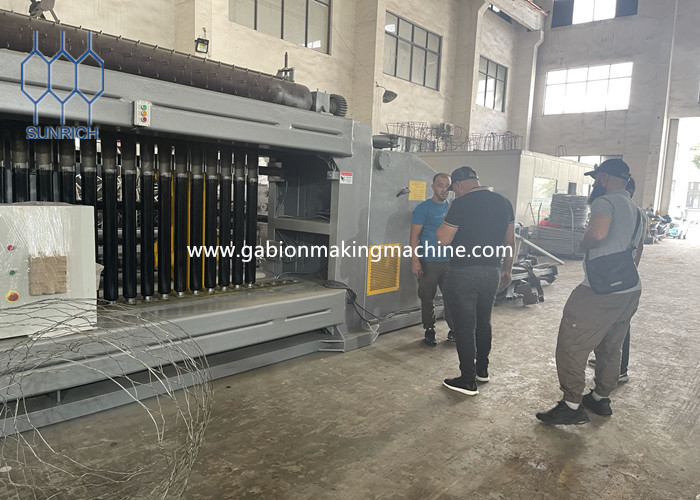

Double Twisting 66x90mm Gabion Box for Construction Projects

Basic Information
Place of Origin: JIANGYIN
Brand Name: SUNRICH
Certification: CE
Model Number: SRC-66-2
Minimum Order Quantity: one set
Price: usd35000-usd48000
Packaging Details: nude packing
Delivery Time: 35 working days
Supply Ability: 10 sets per month
Mesh Size: 66x90mm Max. Output: 165m/h
Wire Diameter: 1.6-3.0mm Power Of PLC Control System: 22kw
Max. Length Of Mesh: 22kw Overall Dimension: 4500mm
Weight: 7.8*1.4m*2.2m Machine Weight: 16T
High Light:

66x90mm Gabion Machine


Double Twisting Gabion Machine


66x90mm Gabion Machine Gabion Box

Product Description:

Reinforcement 66mm Mesh Size Gabion Machine is an advanced gabion box making machine, mainly used for the production of gabion box and gabion box mesh. With a maximum output of 165m/h, the machine is powered by a 22KW lacing motor, a 22KW main motor and a 1.5KW air compressor. It is suitable for the production of gabion boxes of various sizes with different mesh sizes. The gabion box making machine is widely used in flood control and prevention, dam protection, river bank protection, road protection, bridge protection, slope protection, landscape architecture, etc.

The gabion machine is of high quality and high efficiency, and can quickly produce large quantities of gabion boxes without manual intervention. The mesh size of the gabion boxes can be adjusted according to the size of the stones, and the mesh size of the 66mm mesh size gabion machine . The mesh size of the gabion boxes is uniform, with no broken wires, which can ensure the quality of the gabion boxes.

The gabion machine is easy to operate, and the production process is concise and efficient. The gabion box making machine is highly automated with features such as automatic batching, automatic wire feeding, automatic lacing, automatic shearing, and automatic winding. The gabion box machine is highly reliable and is suitable for large-scale gabion box production.



  • Product Name: Reinforcement 66mm Mesh Size Gabion Machine
  • Max. Width of Mesh: 4.5m
  • Voltage: 380V/50HZ/3P
  • Power of Lacing Motor: 22KW
  • Power of Hydraulic Station: 2.2KW

Technical Parameters:

Product Name Reinforcement 100mm Mesh Size Gabion Machine
Max. Width of Mesh 4.5m
Power of PLC Control System 22KW
Power of Main Motor 22KW
Power of Air Compressor 1.5KW
Mesh Size 66mm
Weight 16T
Max. Output 165m/h
Power of Hydraulic Station 2.2KW


Gabion Machine is a kind of gabion making machine used to produce gabion wire mesh. It is an ideal choice for the production of gabion products, which plays a major role in protecting and decorating the environment. It is particularly suitable for the production of gabion products with a maximum width of 4.5m and a weight of 16T. The gabion machine is driven by a 380V/50HZ/3P power supply and a 2.2KW hydraulic station, and the lacing motor power is 22KW. It is widely used in the fields of river bank sand control and slope protection.


Support and Services:

Technical Support and Service for Gabion Machine

We offer a wide range of technical support and service for our Gabion Machine. Our technicians are experienced and knowledgeable, and can assist with installation, operation, and maintenance.

We provide 24/7 support via phone, e-mail, and live chat. Our specialists will respond to your queries within minutes and provide helpful advice. In addition, we offer free online tutorials and webinars to help you get the most out of your Gabion Machine.

We also offer a one-year warranty on all our Gabion Machines, and will repair or replace any defective parts free of charge.


Packing and Shipping:

Packaging and Shipping Gabion Machine
  • Gabion machines are packaged in heavy-duty cardboard boxes.
  • They are shipped via ground transportation.
  • The packaging includes an instruction manual and all necessary parts for assembly.
  • The machine will be delivered to the customer's address within 7-10 business days after the order is placed.


  • Q: What is a Gabion Machine? A: Gabion Machine is a kind of machine used to produce gabions, which are galvanized and PVC-coated wire mesh containers filled with stones for erosion control, soil stabilization, and support.
  • Q: What materials can the Gabion Machine process? A: Gabion Machine can process galvanized wire, PVC-coated wire, steel wire, aluminum wire, copper wire and other wires.
  • Q: How does the Gabion Machine work? A: Gabion Machine produces gabions by automatically feeding, cutting, bending and welding the wire, then filling the gabions with stones.
  • Q: What is the production capacity of the Gabion Machine? A: The production capacity of Gabion Machine can reach up to 10,000 gabions per hour, depending on the type of the machine.
  • Q: What is the size of a Gabion Machine? A: The size of Gabion Machine varies from model to model, but generally it is about 3 meters in length, 1.5 meters in width and 1.5 meters in height.
