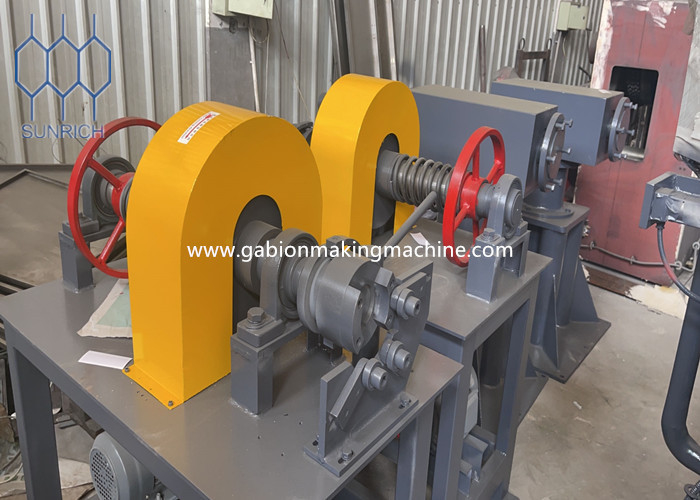

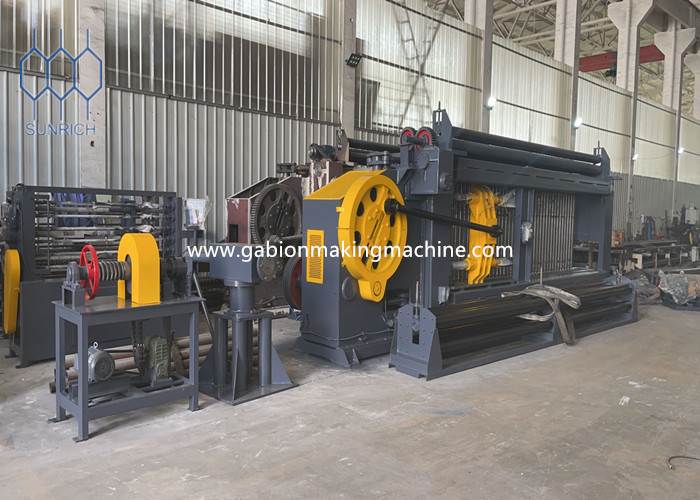

Full Automatic Gabion Mesh machine for Making Stone Mesh , Automatic Oil System
Quick Detail:
Description:
Gabion mesh machine is the professional machine to produce gabion mesh box, which is wildly used in protecting and sustaining bank, hillside, road and bridge, reservoir and other construction project, and it is the good material to prevent or control flood.
Gabion mesh machine adopt PLC automatic control, it has the characteristics of moving steadily, low noise, high potency, it is ideal machine for weaving gabion mesh with big specifications, big width, and big diameter.
Gabion mesh Machine Specification
| Style | Mesh size | Width | Wire diamater | Spindle Speed | Twist | power of motor | Theoretic output |
| (mm) | (mm) | (mm) | (r/min) | (r ) | (kw) | (m/h) | |
| LNWL43-60-2ZX | 60X80 | 4300 | 1.6-3.2 | 25 | 3 | 22 | 165 |
| LNWL43-80-2ZX | 80X100 | 1.6-4.0 | 3 | 195 | |||
| LNWL43-100-2ZX | 100X120 | 1.6-4.0 | 3 | 225 | |||
| LNWL43-120-2ZX | 120X150 | 1.6-4.2 | 20 | 3 | 255 | ||
| LNWL43-60-3ZX | 60X80 | 1.6-3.2 | 25 | 5 | 165 | ||
| LNWL43-80-3ZX | 80X100 | 1.6-4.0 | 5 | 195 | |||
| LNWL43-100-3ZX | 100X120 | 1.6-4.0 | 5 | 225 | |||
| LNWL43-120-3ZX | 120X150 | 1.6-4.2 | 20 | 5 | 255 |
Gabion Mesh machine Application:
Gabion Mesh Machine is the professional machine to produce GI & PVC coated gabion mesh,
the mesh can be used to produce coop, and is widely used as protect and sustain bank,
hillside, road and bridge, reservoir and other construction project, and it is the good material
to prevent or control flood.
Our products are sold all over the world, you can rest assured.
