Reinforced Gab Hexagonal Wire Mesh / Stone Cage Net PVC Coated Wire River Training

Basic Information
Place of Origin: CHINA
Certification: ISO9001,ISO14000
Model Number: LNWL-2
Minimum Order Quantity: 100 sets
Packaging Details: Packing by mesh packing machine&fixed by iron wire
Delivery Time: 15 work days
Payment Terms: T/T,L/C
Supply Ability: 120000 m2/month
Wire Diameter: 2.7mm Selvedge Wire Dia: 3.0mm
Box Size: 2x1x1m Mesh Size: 100x120mm
Material: PVC Coated Wire Application: Anti Noise Barriers
Hole Shape: Hexagonal Type: Welded Mesh
High Light:

gabion wall baskets


gabion wall cages


Reinforced Gab Hexagonal Gabion Box / Stone Cage Net PVC Coated Wire River Training


Gabion Box are multiple twisted hexagonally woven galvanized or PVC coated steel wire mesh compartmented baskets with a rectangular box shape. The compartments are of equal dimension and are formed by internal diaphragms. The compartment is filled with natural stone and the diaphragms assure minimum stone migration within the basket. Thus providing even distribution of the stone even in abnormal conditions, and adding strength to the container to help retain its rectangular shape during the filling operation.


Gabion box is consist of rectangular units, fabricated from a double-twisted hexagonal mesh, filled with stones. In order to reinforce the structure, its edges with a wire having a thicker diameter than the mesh wire. Gabion boxes be divided into cells by diaphragms at every 1 meters




Gabion L x W x H (in meter) Central Diaphragm Counts (in pc) Volume (in cum)
2 x 1 x 1 1 2
3 x 1 x 1 2 3
4 x 1 x 1 4 4
6 x 1x 1 6 6

Gabion Size and Volume



Wire type

Zinc Galvanized Wire OD

(in mm)

PVC coated wire OD

(in mm)

Zinc galvanization weight

(in g/m2)

Mesh wire 2.7 3.7 >245
Selvedge wire 3.4 4.4 >265
Lacing wire 2.2 3.2 >225

Gabion wire outside diameter


Gabion box Function

1.Flexible: Wire mesh structure tolerates huge forces from breaking or cracking.


2.Durable: PVC coated galvanized wire mesh has very long life, better for hydraulic works.


3.Permeable: The gabion mesh structure can provide effective permeability, they are self-draining.


4.Economy: Gabion Structures are very economical compared to the conventional structures and require low maintenance.


5.Strength: The Gabion can absorb huge amount of energy and strong tension for many decades.

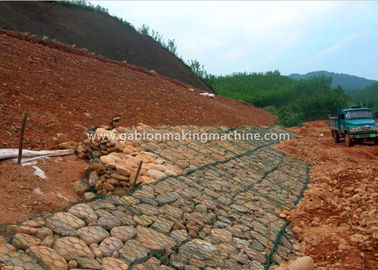

Reinforced Gab Hexagonal Wire Mesh / Stone Cage Net  PVC Coated Wire River Training 0
