|Wire Diameter:||2.7mm||Selvedge Wire Dia:||3.0mm|
|Box Size:||2x1x1m||Mesh Size:||100x120mm|
|Material:||PVC Coated Wire||Usage:||Protecting Mesh|
|Type:||Gabion Wire Mesh, Reinforced Gab||Hole Shape:||Hexagonal|
gabion mesh cage,
gabion wall baskets

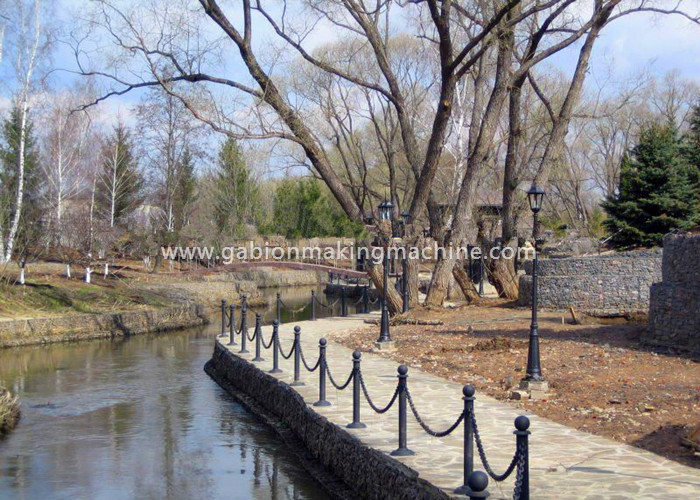

Hexagonal PVC Coated Wire Gabion Boxes , Reinforced Gab Bridge Protection
Gabions's wide applications: earth contrao, soil conservation, protection of highway, railway and velvert against rock fall, barriers at rivers, marine and seawall protection, lining of steep slopes, revetment for lakes and seashores, lining of canals and dams, protection of islands, anti noise barriers, construction of the gravitation abutment wall, river training and flood control.
|Gabion L x W x H (in meter)||Central Diaphragm Counts (in pc)||Volume (in cum)|
|2 x 1 x 1||1||2|
|3 x 1 x 1||2||3|
|4 x 1 x 1||4||4|
|6 x 1x 1||6||6|
Gabion Size and Volume
Zinc Galvanized Wire OD
PVC coated wire OD
Zinc galvanization weight
Gabion wire outside diameter
Flexibility: Flexibility is an important benefit of any gabion structure. The double-twist hexagonal mesh construction permits it to tolerate differential settlement without fracture. This property is especially important when a structure is on unstable soil conditions or in areas where scour from wave action or currents can undermine the toe of the structure and cause structural settlement.
Durability: Gabions support plant growth which provides a live coating for the wire mesh and stones, adding to their durability. Generally, the wire mesh is needed for the first few years of the structure’s life; later the void between the stones is filled with soil, silt, and plant roots which act as a bonding agent for the stones.
Strength: Steel wire hexagonal mesh has strength and flexibility to withstand forces generated by water and earth masses, and the pervious nature of the gabion allows it to absorb and dissipate much of that energy. This is evident on coast protection installations where gabion structures remain effective long after a massive rigid structure fails. Additionally, the double twisted hexagonal mesh won’t unravel if cut.
Permeability: Gabion walls are previous to water and stabilize slopes by the combined action of draining and retaining, precluding the development of hydrostatic pressure behind the gabion wall. Drainage is accomplished by gravity, as well as evaporation as the porous structure permits air circulation through it. As plant growth develops within the structure, the process of transpiration assists in removing moisture from the backfill – a much more efficient system than weep holes in standard masonry walls.
Low cost: Gabion systems are more economical than rigid or semi-rigid structures for the following reasons:
• It requires little maintenance
• Its installations does not require skilled labor and stone fill is available on site or from nearby quarries,
• It requires little or no foundation preparation, as the surface needs to be only reasonably level and smooth.
• Gabions are porous, requiring no costly drainage provision
Ecology: Gabions is an environmentally sensitive solution to slope stabilization. It has already been mentioned that stone fill is done with natural stones making the gabions, naturally porous allowing interaction between the land and the water table and also persuades deposition of soil in the smaller voids between the stone fill during drainage that again promote vegetation growth.
Aesthetics: Gabions supporting vegetation has already been discussed; in some case the vegetation growth is so intense, making the gabion structure invisible, and pleasant to look at. Again if additional effort is given during construction, the gabion can create really pleasing structure with or without vegetation. Unlike other types of materials such a modular block walls the gabion stones do not discolor due to drainage.
